LPT2270AS-HS-12-4.0-19-R footprint, schematic symbol and 3D model by Cre-sound Electronics

Symbol

click to zoom

PCB Footprints

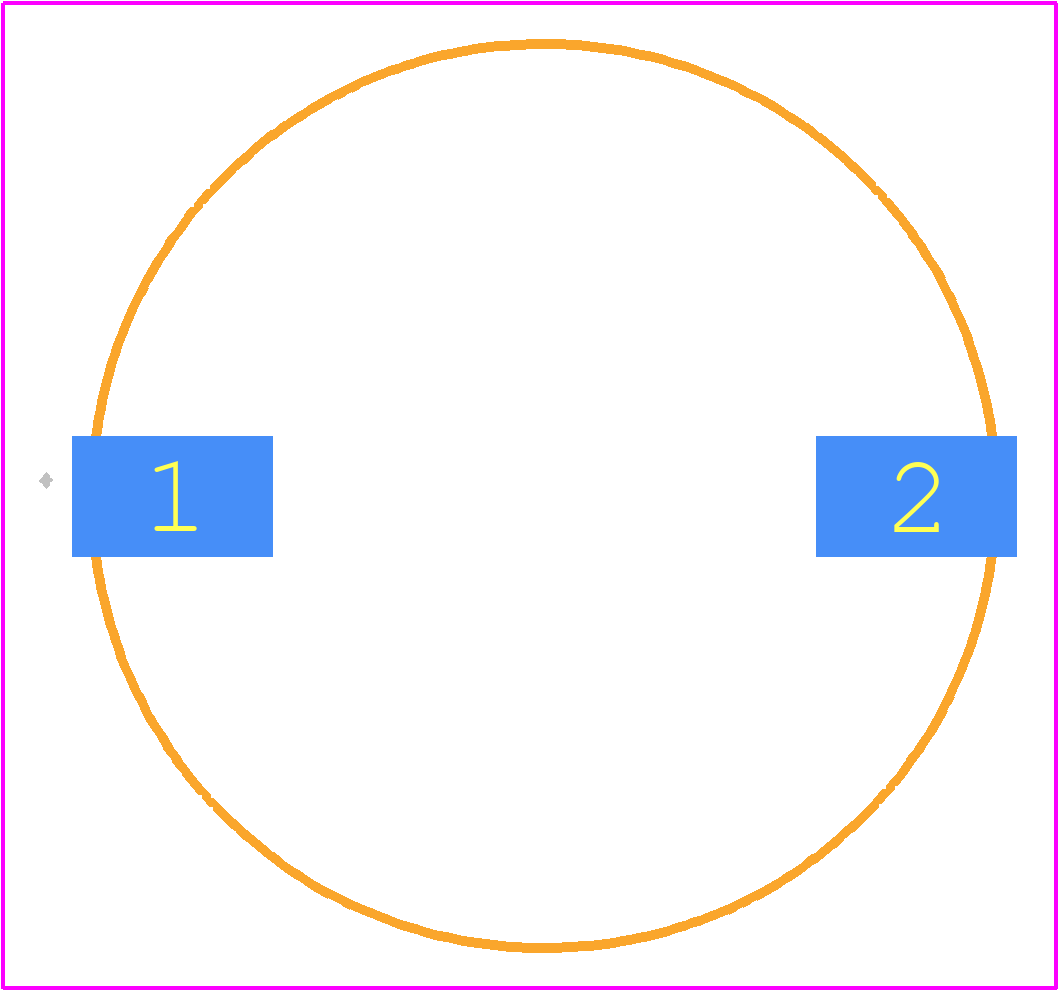

LPT2270AS-HS-12-4.0-19-R - Cre-sound Electronics PCB footprint - Other - Other - LPT2270AS-HS-12-4.0-19-R-2

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for LPT2270AS-HS-12-4.0-19-R
Part Number LPT2270AS-HS-12-4.0-19-R
Manufacturer Cre-sound Electronics
Pin Count 2
Part Category Loudspeaker or Buzzer
Package Category Other
Footprint Name Other - LPT2270AS-HS-12-4.0-19-R-2
Released Date Dec 23, 2019
Last Modified Date Apr 29, 2024 3:53 AM UTC
Pinout / Pin List Click Here (Member Only)

LPT2270AS-HS-12-4.0-19-R Details

Manufacturer Part Number:
LPT2270AS-HS-12-4.0-19-R
Manufacturer:
Changzhou Cre-sound Electronics Co Ltd

Trust Checks

Expert Contribution

System Verified

Community Approved

LPT2270AS-HS-12-4.0-19-R Overview

Use the download button to access the LPT2270AS-HS-12-4.0-19-R schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like LPT22, or try a keyword search, such as Non-linear Resistors
