LQH43MN120J03L - Murata Electronics

Description: LQH43MN_03 Series Inductor 12μH ±5% 1812 (4532)

Download LQH43MN120J03L Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
LQH43MN120J03L - Murata Electronics - PCB symbol
click to zoom
PCB Footprints

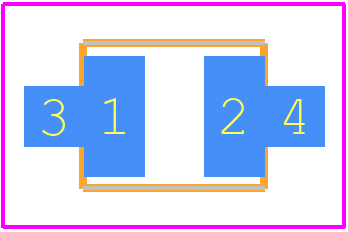

LQH43MN120J03L - Murata Electronics PCB footprint - Other - Other - 1812 (4532) L=4.5±0.3mm W=3.2±0.2mm T=2.6±0.2mm
click to zoom
3D Models
LQH43MN120J03L - Murata Electronics - 3D model - Other - 1812 (4532) L=4.5±0.3mm W=3.2±0.2mm T=2.6±0.2mm
click to zoom

LQH43MN120J03L Details

  • Manufacturer Part Number:

    LQH43MN120J03L

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    Murata Manufacturing Co Ltd

  • YTEOL:

    7

  • Case/Size Code:

    1812

  • Construction:

    Unshielded

  • Core Material:

    FERRITE

  • DC Resistance:

    0.62 Ω

  • Inductance-Nom (L):

    12 µH

  • Inductor Application:

    RF INDUCTOR

  • Inductor Type:

    GENERAL PURPOSE INDUCTOR

  • JESD-609 Code:

    e2

  • Number of Functions:

    1

  • Number of Terminals:

    2

  • Package Height:

    2.6 mm

  • Package Length:

    4.5 mm

  • Package Style:

    SMT

  • Package Width:

    3.2 mm

  • Packing Method:

    TR, EMBOSSED, 7 INCH

  • Quality Factor-Min (at L-nom):

    35

  • Rated Current-Max:

    0.38 A

  • Self Resonance Frequency:

    21 MHz

  • Shape/Size Description:

    RECTANGULAR PACKAGE

  • Shielded:

    NO

  • Special Feature:

    Q MEASURED AT 1 MHZ

  • Surface Mount:

    Reflow soldering

  • Terminal Finish:

    Tin/Copper (Sn/Cu)

  • Terminal Placement:

    DUAL ENDED

  • Terminal Shape:

    WRAPAROUND

  • Test Frequency:

    1 MHz

  • Tolerance:

    5%

LQH43MN120J03L Frequently Asked Questions (FAQs)

  • The recommended PCB land pattern for the LQH43MN120J03L can be found in the Murata Land Pattern Recommendation document, which provides detailed guidelines for pad layout, spacing, and dimensions to ensure reliable assembly and performance.
  • To minimize the impact of temperature and humidity on the LQH43MN120J03L's performance, it's essential to follow proper storage and handling procedures, such as storing the components in a dry, cool place, and avoiding exposure to extreme temperatures or humidity during assembly and operation.
  • While the datasheet specifies a rated voltage of 30V, the maximum allowable voltage for the LQH43MN120J03L is typically 40V, but this may vary depending on the specific application and operating conditions. It's recommended to consult with Murata's technical support or application notes for more information.
  • To ensure the LQH43MN120J03L meets your specific EMI and EMC requirements, it's recommended to consult with Murata's technical support and application notes, which provide guidance on design considerations, layout, and shielding techniques to minimize electromagnetic interference and ensure compliance with relevant standards.
  • The typical lead time and availability for the LQH43MN120J03L can vary depending on the region, distributor, and quantity required. It's recommended to check with authorized distributors or Murata's website for the latest information on lead times, inventory levels, and pricing.
