LQH43PZ101M26L - Murata Electronics

Description: LQH43PZ_26 Series Inductor 100μH ±20% 1812 (4532)

Download LQH43PZ101M26L Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
LQH43PZ101M26L - Murata Electronics - PCB symbol
click to zoom
PCB Footprints

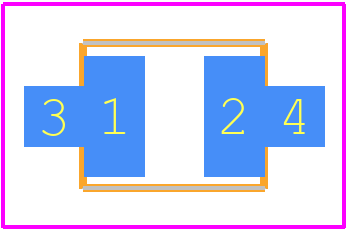

LQH43PZ101M26L - Murata Electronics PCB footprint - Other - Other - 1812 (4532) L=4.5±0.3mm W=3.2±0.2mm T=2.6±0.2mm
click to zoom
3D Models
LQH43PZ101M26L - Murata Electronics - 3D model - Other - 1812 (4532) L=4.5±0.3mm W=3.2±0.2mm T=2.6±0.2mm
click to zoom

LQH43PZ101M26L Details

  • Manufacturer Part Number:

    LQH43PZ101M26L

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    Murata Manufacturing Co Ltd

  • YTEOL:

    7

  • Case/Size Code:

    1812

  • Core Material:

    FERRITE

  • DC Resistance:

    1.8456 Ω

  • Inductance-Nom (L):

    100 µH

  • Inductor Application:

    RF INDUCTOR

  • Inductor Type:

    GENERAL PURPOSE INDUCTOR

  • Number of Functions:

    1

  • Number of Terminals:

    2

  • Package Height:

    2.6 mm

  • Package Length:

    4.5 mm

  • Package Style:

    SMT

  • Package Width:

    3.2 mm

  • Packing Method:

    TR, EMBOSSED, 7 INCH

  • Rated Current-Max:

    0.32 A

  • Reference Standard:

    AEC-Q200

  • Self Resonance Frequency:

    4 MHz

  • Shape/Size Description:

    RECTANGULAR PACKAGE

  • Shielded:

    YES

  • Surface Mount:

    Reflow soldering

  • Terminal Placement:

    DUAL ENDED

  • Terminal Shape:

    WRAPAROUND

  • Test Frequency:

    1 MHz

  • Tolerance:

    20%

LQH43PZ101M26L Frequently Asked Questions (FAQs)

  • The recommended land pattern for LQH43PZ101M26L is available in the Murata Land Pattern document, which can be found on the Murata website. The document provides detailed information on the recommended pad layout, dimensions, and spacing for optimal performance and reliability.
  • During PCB assembly, it's essential to handle the LQH43PZ101M26L inductor with care to avoid damage. Use anti-static wrist straps, mats, or other ESD protection methods to prevent electrostatic discharge. Avoid touching the component's leads or body, and use vacuum pick-up or tweezers to handle the component.
  • The operating temperature range for LQH43PZ101M26L is -40°C to +125°C. However, it's essential to note that the component's performance and reliability may degrade if operated outside the recommended temperature range.
  • The LQH43PZ101M26L inductor is designed to withstand moderate vibration levels. However, if your application involves high-vibration environments, it's recommended to consult with Murata's technical support team or consider using a more robust inductor designed specifically for high-vibration applications.
  • The equivalent series resistance (ESR) of the LQH43PZ101M26L inductor is not explicitly stated in the datasheet. However, you can estimate the ESR by using the inductor's DC resistance (Rdc) value, which is typically around 0.1 ohms for this component. You can also consult with Murata's technical support team or use simulation tools to determine the ESR more accurately.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LQH43PZ101M26L Overview

Use the download button to access the LQH43PZ101M26L schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LQH43, or try a keyword search, such as Fixed Inductors

About Murata Electronics

Murata Manufacturing Co., Ltd. is a Japanese multinational company that specializes in the design, manufacturing, and sale of electronic components and solutions. Murata offers a wide range of electronic components and modules that are used in various industries and applications. Some of their key product categories include: capacitors, inductors, resistors, sensors, rf components and modules, and power devices.
