LQH5BPB100MT0L - Murata Electronics

Description: LQH5BPB_T0 Series Inductor 10μH ±20% 2020 (5050)

Download LQH5BPB100MT0L Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
LQH5BPB100MT0L - Murata Electronics - PCB symbol
click to zoom
PCB Footprints

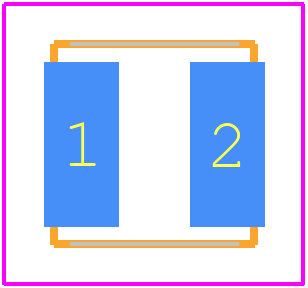

LQH5BPB100MT0L - Murata Electronics PCB footprint - Other - Other - 2020 (5050) T=2.0±0.2mm
click to zoom
3D Models
LQH5BPB100MT0L - Murata Electronics - 3D model - Other - 2020 (5050) T=2.0±0.2mm
click to zoom

LQH5BPB100MT0L Details

  • Manufacturer Part Number:

    LQH5BPB100MT0L

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Factory Lead Time:

    14 Weeks

  • Manufacturer:

    Murata Manufacturing Co Ltd

  • YTEOL:

    7

  • Case/Size Code:

    2020

  • Core Material:

    FERRITE

  • DC Resistance:

    0.1272 Ω

  • Inductance-Nom (L):

    10 µH

  • Inductor Application:

    RF INDUCTOR

  • Inductor Type:

    GENERAL PURPOSE INDUCTOR

  • Number of Functions:

    1

  • Number of Terminals:

    2

  • Package Height:

    2 mm

  • Package Length:

    5 mm

  • Package Style:

    SMT

  • Package Width:

    5 mm

  • Packing Method:

    TR, EMBOSSED, 7 INCH

  • Rated Current-Max:

    1.6 A

  • Self Resonance Frequency:

    25 MHz

  • Shape/Size Description:

    RECTANGULAR PACKAGE

  • Shielded:

    YES

  • Surface Mount:

    Reflow soldering

  • Terminal Placement:

    DUAL ENDED

  • Terminal Shape:

    WRAPAROUND

  • Test Frequency:

    0.1 MHz

  • Tolerance:

    20%

LQH5BPB100MT0L Frequently Asked Questions (FAQs)

  • The recommended land pattern for the LQH5BPB100MT0L is a rectangular pad with a size of 3.5mm x 2.5mm, with a non-solder mask defined (NSMD) pad shape.
  • The LQH5BPB100MT0L's inductance value can vary with temperature. To minimize the impact of temperature on the inductor's performance, it is recommended to use a temperature-compensated circuit design or to use a thermally stable inductor.
  • The maximum current rating for the LQH5BPB100MT0L is 1.5A. Exceeding this rating can cause the inductor to overheat and potentially fail.
  • Yes, the LQH5BPB100MT0L is suitable for high-frequency applications up to 1 GHz. However, the inductor's performance may degrade at higher frequencies due to skin effect and proximity effect.
  • To ensure proper soldering, use a soldering iron with a temperature of 250°C to 270°C, and apply a small amount of solder paste to the pads. Avoid applying excessive heat or pressure, which can damage the inductor.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LQH5BPB100MT0L Overview

Use the download button to access the LQH5BPB100MT0L schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LQH5B, or try a keyword search, such as Fixed Inductors

About Murata Electronics

Murata Manufacturing Co., Ltd. is a Japanese multinational company that specializes in the design, manufacturing, and sale of electronic components and solutions. Murata offers a wide range of electronic components and modules that are used in various industries and applications. Some of their key product categories include: capacitors, inductors, resistors, sensors, rf components and modules, and power devices.
