LQH5BPH2R7NT0L - Murata Electronics

Description: LQH5BPH_T0 Series Inductor 2.7μH ±30% 2020 (5050)

Download LQH5BPH2R7NT0L Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
LQH5BPH2R7NT0L - Murata Electronics - PCB symbol
click to zoom
PCB Footprints

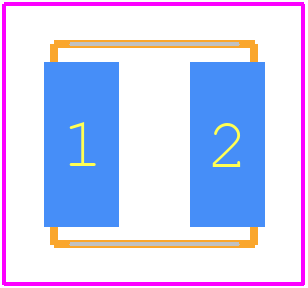

LQH5BPH2R7NT0L - Murata Electronics PCB footprint - Other - Other - 2020 (5050) T=2.0±0.2mm
click to zoom
3D Models
LQH5BPH2R7NT0L - Murata Electronics - 3D model - Other - 2020 (5050) T=2.0±0.2mm
click to zoom

LQH5BPH2R7NT0L Details

  • Manufacturer Part Number:

    LQH5BPH2R7NT0L

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Manufacturer:

    Murata Manufacturing Co Ltd

  • YTEOL:

    7

  • Case/Size Code:

    2020

  • Construction:

    RECTANGULAR PACKAGE

  • Core Material:

    FERRITE

  • DC Resistance:

    0.042 Ω

  • Inductance-Nom (L):

    2.7 µH

  • Inductor Application:

    POWER INDUCTOR

  • Inductor Type:

    GENERAL PURPOSE INDUCTOR

  • Number of Functions:

    1

  • Number of Terminals:

    2

  • Package Height:

    2 mm

  • Package Length:

    5 mm

  • Package Style:

    SMT

  • Package Width:

    5 mm

  • Packing Method:

    TR, EMBOSSED, 7 INCH

  • Rated Current-Max:

    2.5 A

  • Reference Standard:

    AEC-Q200

  • Self Resonance Frequency:

    50 MHz

  • Shape/Size Description:

    RECTANGULAR PACKAGE

  • Shielded:

    YES

  • Surface Mount:

    Reflow soldering

  • Terminal Placement:

    DUAL ENDED

  • Terminal Shape:

    WRAPAROUND

  • Test Frequency:

    0.1 MHz

  • Tolerance:

    30%

LQH5BPH2R7NT0L Frequently Asked Questions (FAQs)

  • The recommended land pattern for LQH5BPH2R7NT0L is a rectangular pad with a size of 2.5mm x 1.6mm, with a non-solder mask defined (NSMD) pad shape. The pad should be centered on the component and have a solder mask clearance of 0.1mm.
  • During reflow soldering, the LQH5BPH2R7NT0L inductor should be placed on the PCB with the component marking side facing up. The recommended reflow profile is a peak temperature of 260°C, with a dwell time of 20-30 seconds above 220°C.
  • Yes, the LQH5BPH2R7NT0L inductor is suitable for high-frequency applications up to 1 GHz due to its low equivalent series resistance (ESR) and high self-resonant frequency (SRF). However, the inductor's performance may degrade at frequencies above 1 GHz.
  • The LQH5BPH2R7NT0L inductor is rated for operation up to 125°C. While it can tolerate short-term excursions up to 150°C, prolonged exposure to high temperatures may affect its performance and reliability. It's recommended to derate the inductor's current rating at high temperatures.
  • The LQH5BPH2R7NT0L inductor should be secured to the PCB using a suitable adhesive, such as a silicone-based adhesive, to prevent vibration and mechanical stress. Additionally, the inductor's leads should be soldered to the PCB to ensure a reliable electrical connection.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LQH5BPH2R7NT0L Overview

Use the download button to access the LQH5BPH2R7NT0L schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LQH5B, or try a keyword search, such as Fixed Inductors

About Murata Electronics

Murata Manufacturing Co., Ltd. is a Japanese multinational company that specializes in the design, manufacturing, and sale of electronic components and solutions. Murata offers a wide range of electronic components and modules that are used in various industries and applications. Some of their key product categories include: capacitors, inductors, resistors, sensors, rf components and modules, and power devices.
