LR1F5K6 Frequently Asked Questions (FAQs)

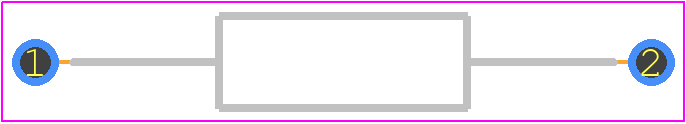

• What is the recommended PCB layout and land pattern for the LR1F5K6?
  TE Connectivity provides a recommended PCB layout and land pattern in their application note AN-1043, which can be found on their website. It's essential to follow these guidelines to ensure proper soldering and to prevent thermal issues.
• How do I handle the thermal management of the LR1F5K6?
  The LR1F5K6 has a high power dissipation, so it's crucial to implement proper thermal management. This can be achieved by using a heat sink, thermal interface material, and ensuring good airflow around the component. TE Connectivity provides thermal management guidelines in their application note AN-1043.
• What is the maximum operating temperature range for the LR1F5K6?
  The maximum operating temperature range for the LR1F5K6 is -40°C to 150°C. However, the device's performance and reliability may degrade if operated at the extreme ends of this range. It's recommended to operate the device within a temperature range of -20°C to 125°C for optimal performance.
• Can I use the LR1F5K6 in a high-vibration environment?
  The LR1F5K6 is designed to withstand moderate vibration levels. However, if the device will be subjected to high-vibration environments, it's recommended to use additional mechanical support, such as a bracket or clamp, to ensure the device remains securely attached to the PCB.
• How do I ensure the reliability of the LR1F5K6 in a humid environment?
  To ensure the reliability of the LR1F5K6 in a humid environment, it's recommended to apply a conformal coating to the PCB and follow proper storage and handling procedures. TE Connectivity also provides guidelines for humidity protection in their application note AN-1043.
