LRPS-2-1J+ - Mini-Circuits

Description: RF Power Divider 5 MHz ~ 500 MHz Isolation (Min) 25dB, 3° Imbalance (Max) 6-SMD, No Lead 5 MHz ~ 500 MHz -40°C to 85°C

Download LRPS-2-1J+ Model

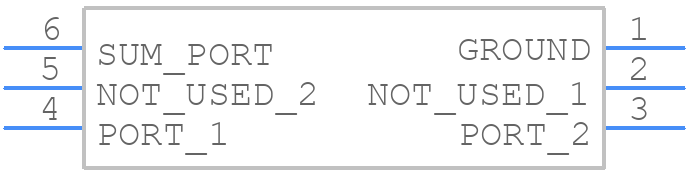

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
LRPS-2-1J+ - Mini-Circuits PCB footprint - Other - Other - QQQ569_2026-1.1
click to zoom
3D Models
LRPS-2-1J+ - Mini-Circuits  - 3D model - Other - QQQ569_2026-1.1
click to zoom

LRPS-2-1J+ Details

  • Manufacturer Part Number:

    LRPS-2-1J+

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    USA

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    6.48

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    30 dBm

  • Insertion Loss-Max:

    1.2 dB

  • Isolation-Min:

    23 dB

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    6

  • Operating Frequency-Max:

    500 MHz

  • Operating Frequency-Min:

    5 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    CERAMIC, METAL-SEALED COFIRED

  • Package Equivalence Code:

    SMDIP6,.4

  • RF/Microwave Device Type:

    SPLITTER AND COMBINER

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - with Nickel (Ni) barrier

  • VSWR-Max:

    1.25

LRPS-2-1J+ Frequently Asked Questions (FAQs)

  • Mini-Circuits provides a recommended PCB layout and footprint in their application note AN-60-014, which can be found on their website. It's essential to follow this layout to ensure optimal performance and minimize parasitic effects.
  • The LRPS-2-1J+ has a 50 ohm input and output impedance. To impedance match, use a pi-network or a T-network topology with resistors and capacitors. Mini-Circuits also provides a matching circuit example in their application note AN-60-014.
  • The LRPS-2-1J+ can handle up to 1W of input power. Exceeding this power limit may cause damage to the device or affect its performance. It's essential to ensure that the input power is within the specified limit.
  • To reduce the noise figure, ensure that the input signal is strong, and the input impedance is well-matched. Additionally, use a low-noise voltage regulator to power the device, and consider adding a noise-reducing component, such as a ferrite bead, to the power supply line.
  • The LRPS-2-1J+ is rated for operation up to 85°C. However, high temperatures can affect its performance and reliability. If you need to operate the device in a high-temperature environment, consider using a heat sink or a thermal management system to keep the temperature within the specified range.
