LS10-13B15R3 footprint, schematic symbol and 3D model by Mornsun Power

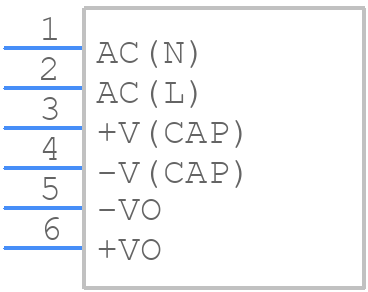

Symbol

click to zoom

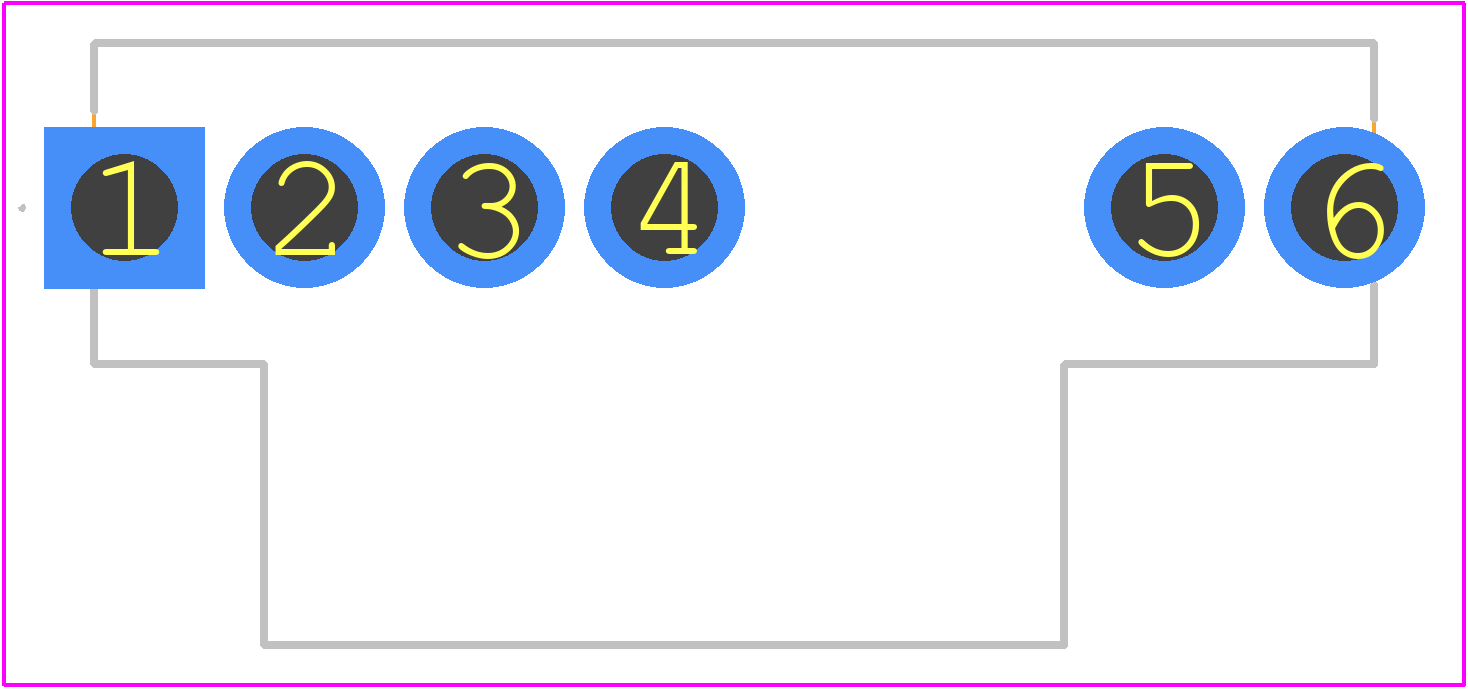

PCB Footprints

LS10-13B15R3 - Mornsun Power PCB footprint - Other - Other - LS10-13B15R3-1

click to zoom

3D Models

LS10-13B15R3 - Mornsun Power - 3D model - Other - LS10-13B15R3-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for LS10-13B15R3
Part Number LS10-13B15R3
Manufacturer Mornsun Power
Pin Count 6
Part Category Power Supply
Package Category Other
Footprint Name Other - LS10-13B15R3-1
Released Date Nov 8, 2023
Last Modified Date Nov 8, 2023 6:57 AM UTC
Pinout / Pin List Click Here (Member Only)

LS10-13B15R3 Details

Manufacturer Part Number:
LS10-13B15R3
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
MODULE-6
ECCN Code:
EAR99
Manufacturer:
MORNSUN
YTEOL:
6
Analog IC - Other Type:
AC-DC REGULATED POWER SUPPLY MODULE
Approvals:
CB, CE, CQC, EN, IEC, UKCA, UL
Efficiency (Main Output):
82%
Input Voltage-Max:
305 V
Input Voltage-Min:
85 V
Input Voltage-Nom:
115 V
JESD-30 Code:
R-XSMA-T6
Length:
32 mm
Line Regulation-Max:
1%
Load Regulation-Max:
1.5%
Number of Functions:
1
Number of Outputs:
1
Number of Terminals:
6
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Output Current-Max:
0.67 A
Output Voltage-Max:
15.3 V
Output Voltage-Min:
14.7 V
Output Voltage-Nom:
15 V
Package Body Material:
UNSPECIFIED
Package Code:
SMA
Package Equivalence Code:
MODULE,6LEAD(UNSPEC)
Package Shape:
RECTANGULAR
Package Style:
MICROELECTRONIC ASSEMBLY
Peak Reflow Temperature (Cel):
NOT SPECIFIED
Protections:
OVER CURRENT; OVER VOLTAGE; SHORT CIRCUIT
Ripple Voltage (Main Out):
0.053025 Vrms
Screening Level:
EN/IEC/UL 62368-1
Seated Height-Max:
15.05 mm
Surface Mount:
NO
Technology:
HYBRID
Terminal Form:
THROUGH-HOLE
Terminal Position:
SINGLE
Time@Peak Reflow Temperature-Max (s):
NOT SPECIFIED
Total Power Output-Max:
10 W
Trim/Adjustable Output:
NO
Width:
17.2 mm

LS10-13B15R3 Frequently Asked Questions (FAQs)

According to MORNSUN's application notes, a 10uF to 22uF ceramic capacitor with a voltage rating of 25V or higher is recommended for input decoupling to ensure stable operation.
To ensure the output voltage is within the specified tolerance, it's recommended to use a load capacitor with a low ESR (Equivalent Series Resistance) and a minimum capacitance of 10uF. Additionally, the output voltage can be adjusted using the trim pin (TRIM) by connecting a resistor between TRIM and GND.
While the datasheet specifies an operating temperature range of -40°C to 85°C, MORNSUN recommends derating the output power by 2.5% per degree above 60°C to ensure reliable operation. This means the maximum ambient temperature for reliable operation is around 70°C to 75°C.
Yes, the LS10-13B15R3 is designed to withstand vibrations up to 10G (10 times the acceleration due to gravity) according to MORNSUN's reliability testing. However, it's recommended to follow proper PCB design and mounting guidelines to ensure the module is securely fastened to the board.
The typical efficiency of the LS10-13B15R3 is around 85% to 90% depending on the input voltage, output load, and ambient temperature. MORNSUN provides an efficiency curve in the datasheet to help estimate the efficiency under different operating conditions.
