LS1020AXE7KQB - NXP

Description: NXP - LS1020AXE7KQB - Microprocessor Cortex QorIQ Family QorIQ Layerscape Series, 32bit, 1GHz, 1V Supply, FBGA-525

Download LS1020AXE7KQB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
LS1020AXE7KQB - NXP - PCB symbol
click to zoom
PCB Footprints

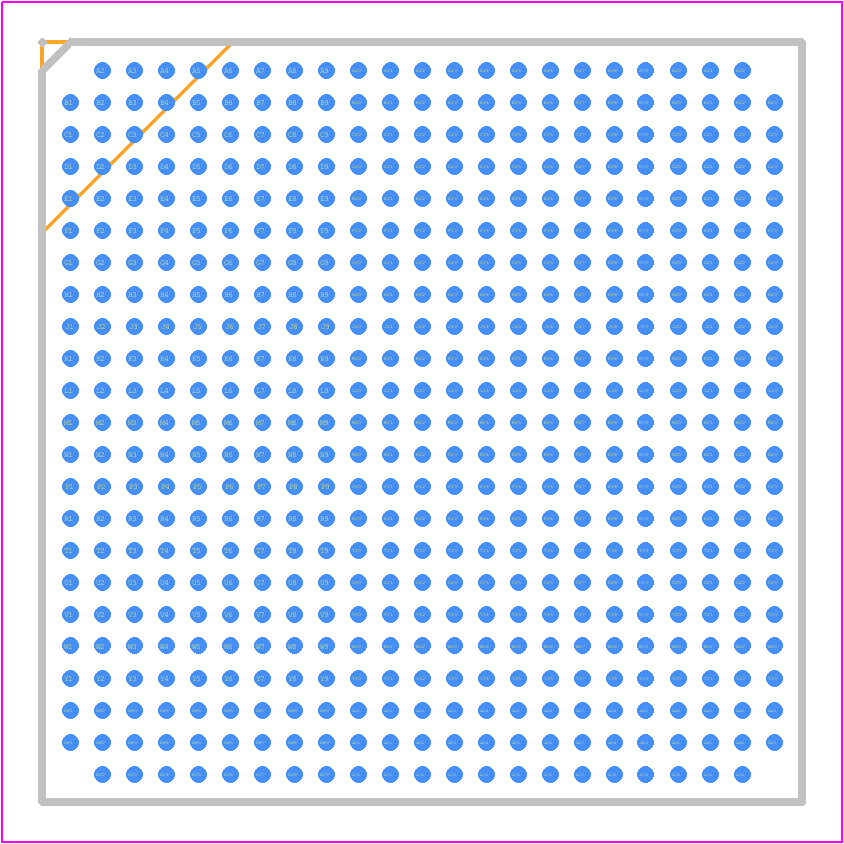

LS1020AXE7KQB - NXP PCB footprint - BGA - BGA - FC-PBGA_SOT1655-1_2022
click to zoom
3D Models
LS1020AXE7KQB - NXP - 3D model - BGA - FC-PBGA_SOT1655-1_2022
click to zoom

LS1020AXE7KQB Details

  • Manufacturer Part Number:

    LS1020AXE7KQB

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    5A002.A.1

  • HTS Code:

    8542.31.00.01

  • Factory Lead Time:

    18 Weeks

  • Date Of Intro:

    2017-09-21

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    9

  • Moisture Sensitivity Level:

    3

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Time@Peak Reflow Temperature-Max (s):

    40

  • uPs/uCs/Peripheral ICs Type:

    SoC

LS1020AXE7KQB Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the LS1020AXE7KQB is -40°C to 105°C.
  • The DDR memory interface on the LS1020AXE7KQB can be configured using the DDR controller registers. Refer to the LS1020A Reference Manual for detailed information on configuring the DDR memory interface.
  • The maximum frequency of the CPU on the LS1020AXE7KQB is 1.2 GHz.
  • The LS1020AXE7KQB has a built-in security engine that supports various security protocols. Refer to the LS1020A Security Reference Manual for detailed information on using the security features.
  • The power consumption of the LS1020AXE7KQB varies depending on the operating frequency and usage. Refer to the LS1020A Datasheet for detailed power consumption information.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LS1020AXE7KQB Overview

Use the download button to access the LS1020AXE7KQB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LS102, or try a keyword search, such as Other uPs/uCs/Peripheral ICs
