LS1021AXE7KQB - NXP

Description: NXP - LS1021AXE7KQB - MPU, 32BIT, 1GHZ, FBGA-525

Download LS1021AXE7KQB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
LS1021AXE7KQB - NXP - PCB symbol
click to zoom
PCB Footprints

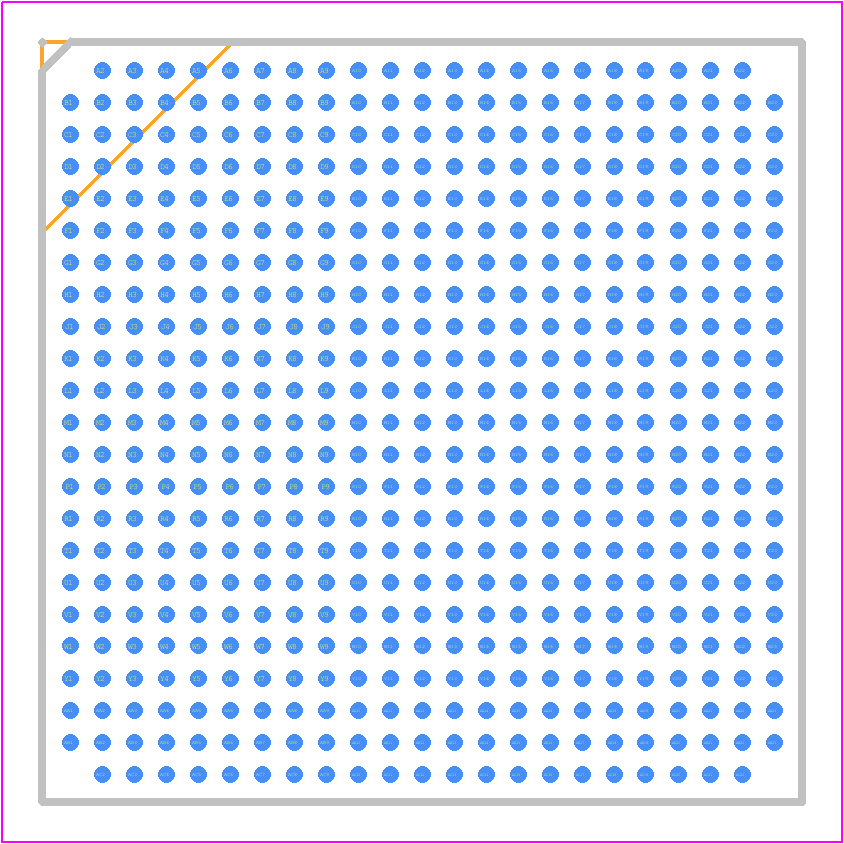

LS1021AXE7KQB - NXP PCB footprint - BGA - BGA - FC-PBGA
click to zoom
3D Models
LS1021AXE7KQB - NXP - 3D model - BGA - FC-PBGA
click to zoom

LS1021AXE7KQB Details

  • Manufacturer Part Number:

    LS1021AXE7KQB

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    5A002.A.1

  • HTS Code:

    8542.31.00.01

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    9

  • Moisture Sensitivity Level:

    3

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Time@Peak Reflow Temperature-Max (s):

    40

  • uPs/uCs/Peripheral ICs Type:

    SoC

LS1021AXE7KQB Frequently Asked Questions (FAQs)

  • The LS1021AXE7KQB has an operating temperature range of -40°C to 105°C.
  • The DDR memory interface on the LS1021AXE7KQB can be configured using the DDR controller registers. Refer to the LS1021A Reference Manual for detailed information on configuring the DDR interface.
  • The maximum frequency of the CPU on the LS1021AXE7KQB is 1.2 GHz.
  • The LS1021AXE7KQB has a TrustZone-enabled ARM Cortex-A7 processor, which provides a secure environment for executing trusted code. The device also has a cryptographic acceleration engine and a secure boot mechanism. Refer to the LS1021A Security Reference Manual for detailed information on using the security features.
  • The power consumption of the LS1021AXE7KQB varies depending on the operating frequency, voltage, and usage scenario. Refer to the LS1021A Datasheet for detailed power consumption information.
