LS1021AXN7KQB - NXP

Description: Microprocessors - MPU LS1 32Bit ARM SoC, 1GHz, DDR3/4, LCDC, vTSEC, PCIe, USB3, SATA3, uQE, CAN, -40 to 105C, Rev2.0

Download LS1021AXN7KQB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
LS1021AXN7KQB - NXP - PCB symbol
click to zoom
PCB Footprints

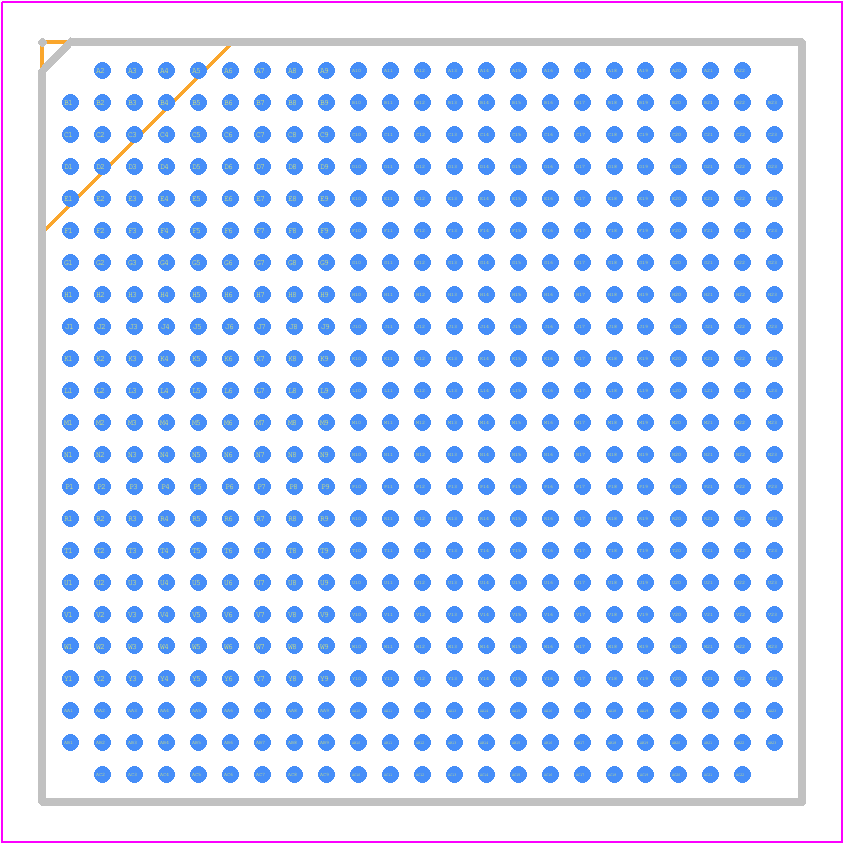

LS1021AXN7KQB - NXP PCB footprint - BGA - BGA - FC-PBGA_SOT1655-1_2022
click to zoom
3D Models
LS1021AXN7KQB - NXP - 3D model - BGA - FC-PBGA_SOT1655-1_2022
click to zoom

LS1021AXN7KQB Details

  • Manufacturer Part Number:

    LS1021AXN7KQB

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    3A991.A.1

  • HTS Code:

    8542.31.00.01

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    9

  • Moisture Sensitivity Level:

    3

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Time@Peak Reflow Temperature-Max (s):

    40

  • uPs/uCs/Peripheral ICs Type:

    SoC

LS1021AXN7KQB Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the LS1021AXN7KQB is -40°C to 105°C.
  • The clock settings for the LS1021AXN7KQB can be configured using the Clock Controller (CLK) module. The CLK module allows you to configure the clock sources, clock frequencies, and clock distribution. You can use the NXP-provided software development kit (SDK) or a third-party IDE to configure the clock settings.
  • The LS1021AXN7KQB has 512 KB of RAM and 1 MB of flash memory.
  • The LS1021AXN7KQB supports secure boot through the use of a boot ROM and a secure boot key. You can use the NXP-provided secure boot tools and software to implement secure boot on the device.
  • The power consumption characteristics of the LS1021AXN7KQB vary depending on the operating frequency, voltage, and other factors. However, according to the datasheet, the typical power consumption is around 1.2W at 1GHz frequency and 1.2V voltage.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LS1021AXN7KQB Overview

Use the download button to access the LS1021AXN7KQB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LS102, or try a keyword search, such as Other uPs/uCs/Peripheral ICs

About NXP

NXP Semiconductors is a leading manufacturer of semiconductor devices with a wide range of semiconductor solutions, including microcontrollers, sensors, connectivity solutions, power management ICs, and security solutions. These products are used in a variety of applications such as automotive, industrial automation, smart homes, mobile devices, and more. NXP Semiconductors is one of the world’s largest semiconductor companies and is headquartered in Eindhoven, the Netherlands.
