LS1023ASN7KQB - NXP

Description: MPU QorIQ LS1023A RISC 64bit 1GHz 621-Pin FBGA Tray

Download LS1023ASN7KQB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
LS1023ASN7KQB - NXP - PCB symbol
click to zoom
PCB Footprints

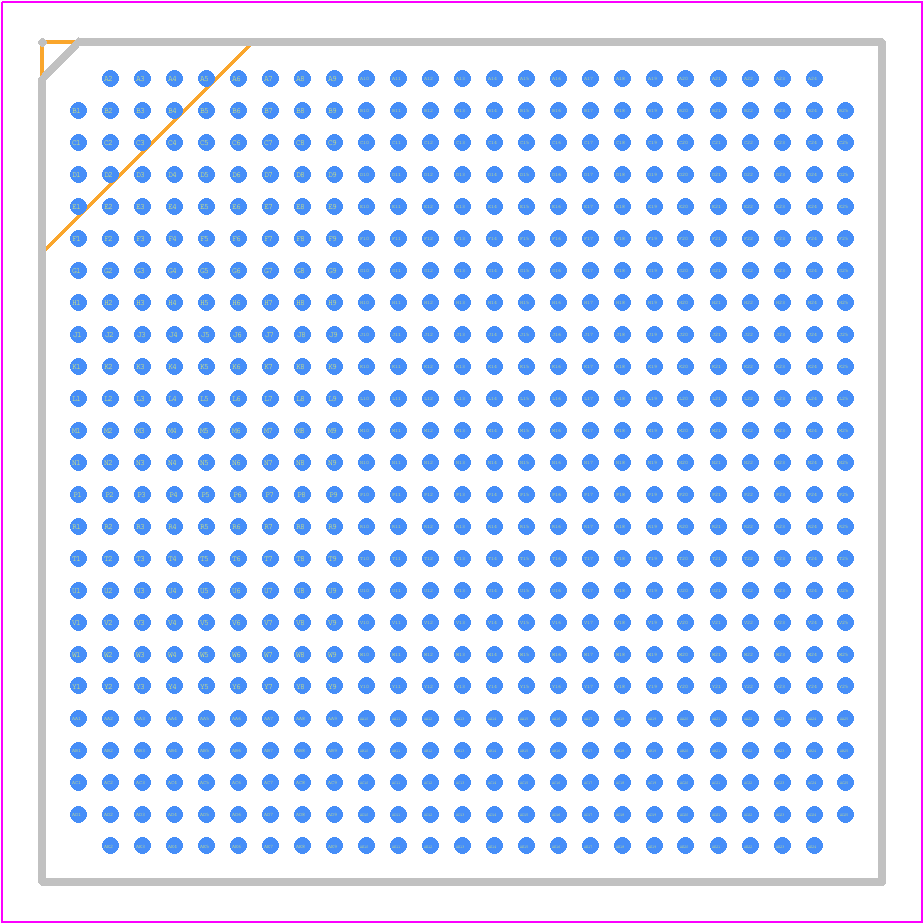

LS1023ASN7KQB - NXP PCB footprint - BGA - BGA - 21x21 mm (621 balls)
click to zoom
3D Models
LS1023ASN7KQB - NXP - 3D model - BGA - 21x21 mm (621 balls)
click to zoom

LS1023ASN7KQB Details

  • Manufacturer Part Number:

    LS1023ASN7KQB

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    FCBGA-621

  • ECCN Code:

    3A991.A.1

  • HTS Code:

    8542.31.00.01

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    9

  • Additional Feature:

    ALSO OPERATES AT 1V SUPPLY NOM

  • JESD-30 Code:

    S-PBGA-B621

  • JESD-609 Code:

    e1

  • Length:

    21 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    621

  • Operating Temperature-Max:

    105 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    FBGA

  • Package Equivalence Code:

    BGA621,25X25,32

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, FINE PITCH

  • Peak Reflow Temperature (Cel):

    250

  • Seated Height-Max:

    2.07 mm

  • Supply Voltage-Max:

    0.93 V

  • Supply Voltage-Min:

    0.87 V

  • Supply Voltage-Nom:

    0.9 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    21 mm

  • uPs/uCs/Peripheral ICs Type:

    SoC

LS1023ASN7KQB Frequently Asked Questions (FAQs)

  • NXP provides a recommended PCB layout guide for the LS1023ASN7KQB in the 'LS1023A Series PCB Design Guidelines' document, which can be found on the NXP website. It's essential to follow these guidelines to ensure proper thermal management, signal integrity, and power supply decoupling.
  • To optimize power consumption, use the Dynamic Voltage and Frequency Scaling (DVFS) feature, which allows you to adjust the CPU frequency and voltage based on the system's workload. Additionally, use the Power Management Unit (PMU) to control the power modes of the device, and implement power gating for unused peripherals.
  • The LS1023ASN7KQB has an extended temperature range of -40°C to 125°C, making it suitable for industrial and automotive applications. However, it's essential to ensure proper thermal management and heat dissipation to prevent overheating and ensure reliable operation.
  • The LS1023ASN7KQB has a secure boot mechanism that uses a combination of hardware and software features to ensure the authenticity and integrity of the boot process. Use the Secure Boot mechanism, which includes features like boot image encryption, digital signatures, and secure key storage, to prevent unauthorized access and ensure a trusted boot process.
  • The LS1023ASN7KQB has a dual Gigabit Ethernet interface, with each interface capable of supporting up to 1 Gbps bandwidth. The actual bandwidth achieved will depend on the system's configuration, network traffic, and other factors.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LS1023ASN7KQB Overview

Use the download button to access the LS1023ASN7KQB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LS102, or try a keyword search, such as Other uPs/uCs/Peripheral ICs
