LS1024ASE7MLA - NXP

Description: LS1024ASE7MLA - MPU, 32BIT, ARM9, 1.2GHZ, FCPBGA-625

Download LS1024ASE7MLA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

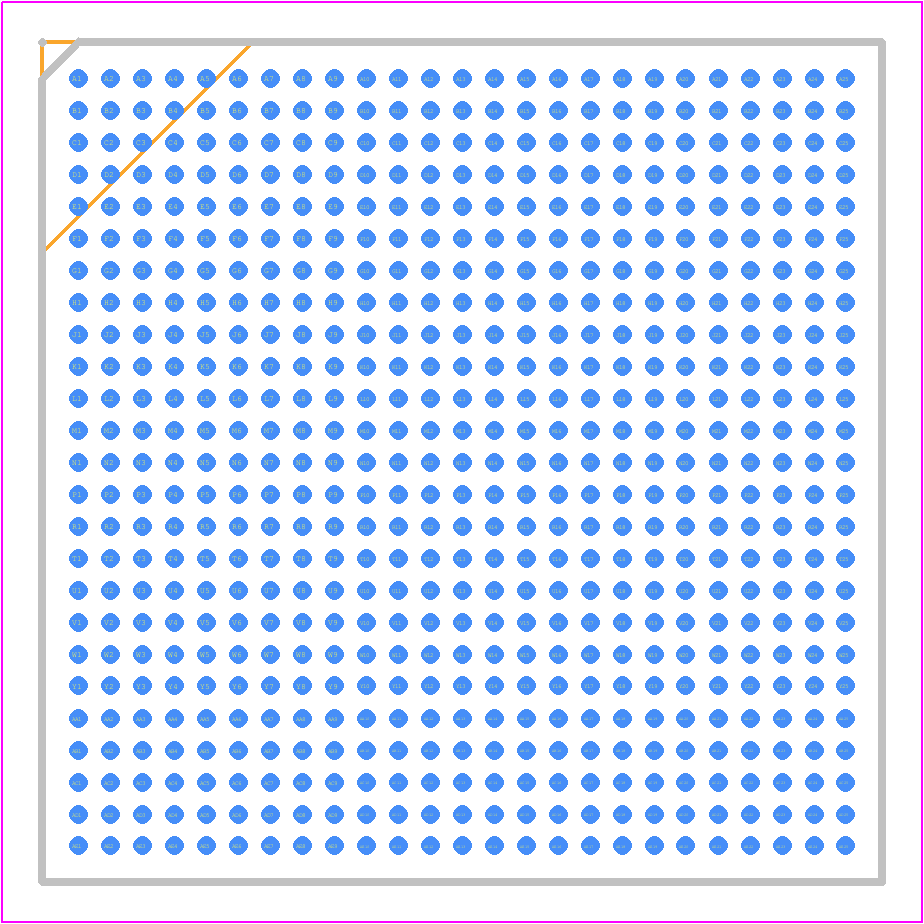

LS1024ASE7MLA - NXP PCB footprint - BGA - BGA - FBGA625
click to zoom
3D Models
LS1024ASE7MLA - NXP  - 3D model - BGA - FBGA625
click to zoom

LS1024ASE7MLA Details

  • Manufacturer Part Number:

    LS1024ASE7MLA

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    BGA-625

  • ECCN Code:

    5A002.A.1

  • HTS Code:

    8542.31.00.01

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    0

  • Address Bus Width:

    26

  • Boundary Scan:

    YES

  • Clock Frequency-Max:

    1200 MHz

  • JESD-30 Code:

    S-PBGA-B625

  • Length:

    21 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    625

  • Operating Temperature-Max:

    70 °C

  • Operating Temperature-Min:

    -10 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    FBGA

  • Package Equivalence Code:

    BGA625,25X25,32

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, FINE PITCH

  • Peak Reflow Temperature (Cel):

    250

  • Seated Height-Max:

    2.67 mm

  • Supply Current-Max:

    1500 mA

  • Supply Voltage-Max:

    1.164 V

  • Supply Voltage-Min:

    1.096 V

  • Supply Voltage-Nom:

    1.13 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    21 mm

  • uPs/uCs/Peripheral ICs Type:

    MULTIFUNCTION PERIPHERAL

LS1024ASE7MLA Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for LS1024ASE7MLA is -40°C to 125°C.
  • The clock settings for LS1024ASE7MLA can be configured using the Clock Controller (CLK) module. Refer to the device's reference manual for detailed instructions.
  • The maximum frequency of the LS1024ASE7MLA processor is 1.2 GHz.
  • Power management in LS1024ASE7MLA can be implemented using the Power Management Controller (PMC) module. This module provides various power-saving modes, including sleep, deep sleep, and power-off modes.
  • The LS1024ASE7MLA has 1 MB of RAM and 4 MB of flash memory.
