LS1024ASN7ELA - NXP

Description: MPU QorIQ LS1024A RISC 32bit 1.2GHz 625-Pin FCBGA Tray

Download LS1024ASN7ELA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

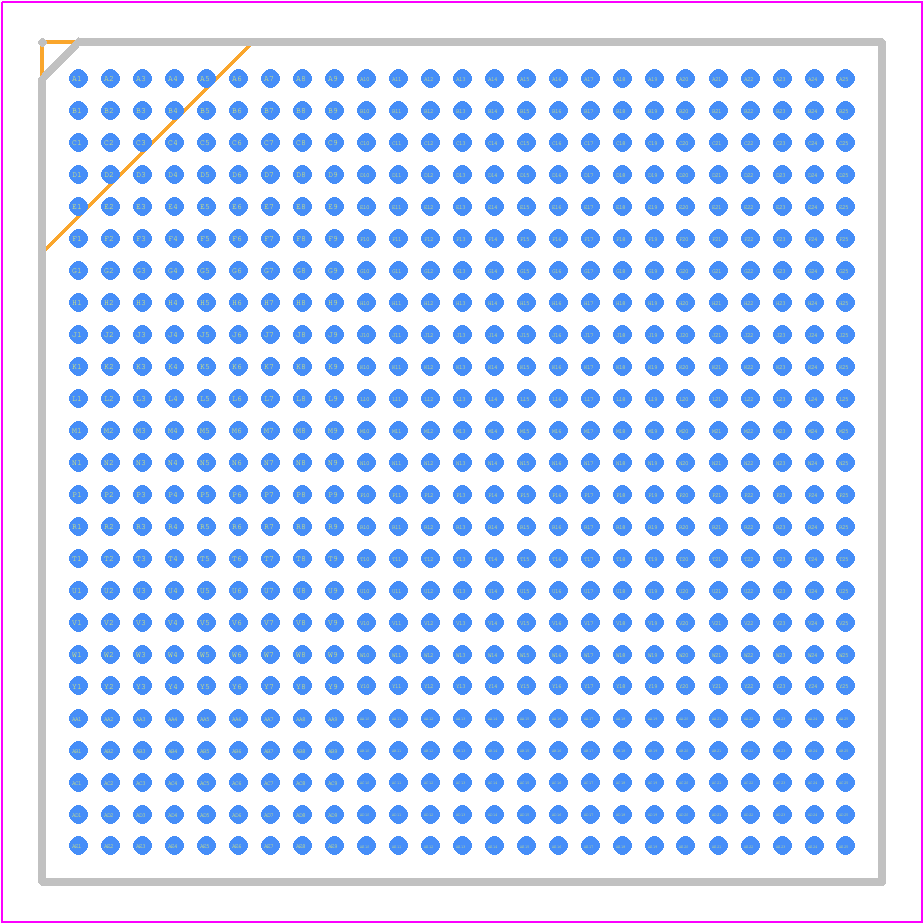

LS1024ASN7ELA - NXP PCB footprint - BGA - BGA - FBGA625
click to zoom
3D Models
LS1024ASN7ELA - NXP  - 3D model - BGA - FBGA625
click to zoom

LS1024ASN7ELA Details

  • Manufacturer Part Number:

    LS1024ASN7ELA

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    BGA-625

  • ECCN Code:

    5A002.A.1

  • HTS Code:

    8542.31.00.01

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    0

  • Address Bus Width:

    26

  • Boundary Scan:

    YES

  • Clock Frequency-Max:

    650 MHz

  • JESD-30 Code:

    S-PBGA-B625

  • Length:

    21 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    625

  • Operating Temperature-Max:

    70 °C

  • Operating Temperature-Min:

    -10 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    FBGA

  • Package Equivalence Code:

    BGA625,25X25,32

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, FINE PITCH

  • Peak Reflow Temperature (Cel):

    250

  • Seated Height-Max:

    2.67 mm

  • Supply Current-Max:

    1200 mA

  • Supply Voltage-Max:

    1.155 V

  • Supply Voltage-Min:

    1.045 V

  • Supply Voltage-Nom:

    1.1 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    21 mm

  • uPs/uCs/Peripheral ICs Type:

    MULTIFUNCTION PERIPHERAL

LS1024ASN7ELA Frequently Asked Questions (FAQs)

  • NXP provides a recommended PCB layout guide for the LS1024ASN7ELA in their application note AN12271, which includes guidelines for thermal vias, heat sinks, and PCB material selection.
  • NXP provides a secure boot implementation guide for the LS1024ASN7ELA in their application note AN12345, which includes details on generating and storing secure boot keys, and configuring the boot process.
  • While the datasheet specifies an operating temperature range of -40°C to 125°C, NXP recommends a maximum operating temperature of 105°C for optimal reliability and performance.
  • Yes, the LS1024ASN7ELA is designed to meet the requirements of safety-critical applications, such as automotive and industrial control systems. NXP provides safety manuals and FMEDA reports to support safety certification.
  • NXP provides a range of debug and trace tools for the LS1024ASN7ELA, including the NXP LPC-Link2 debug probe and the ARM Keil µVision IDE. These tools allow for real-time debugging, tracing, and profiling of the device.
