Part Image

LS1024ASN7MLA - NXP

Description: Microprocessors 2 cores @ 1.2GHz PCIe DDR3 VoIP

Download LS1024ASN7MLA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

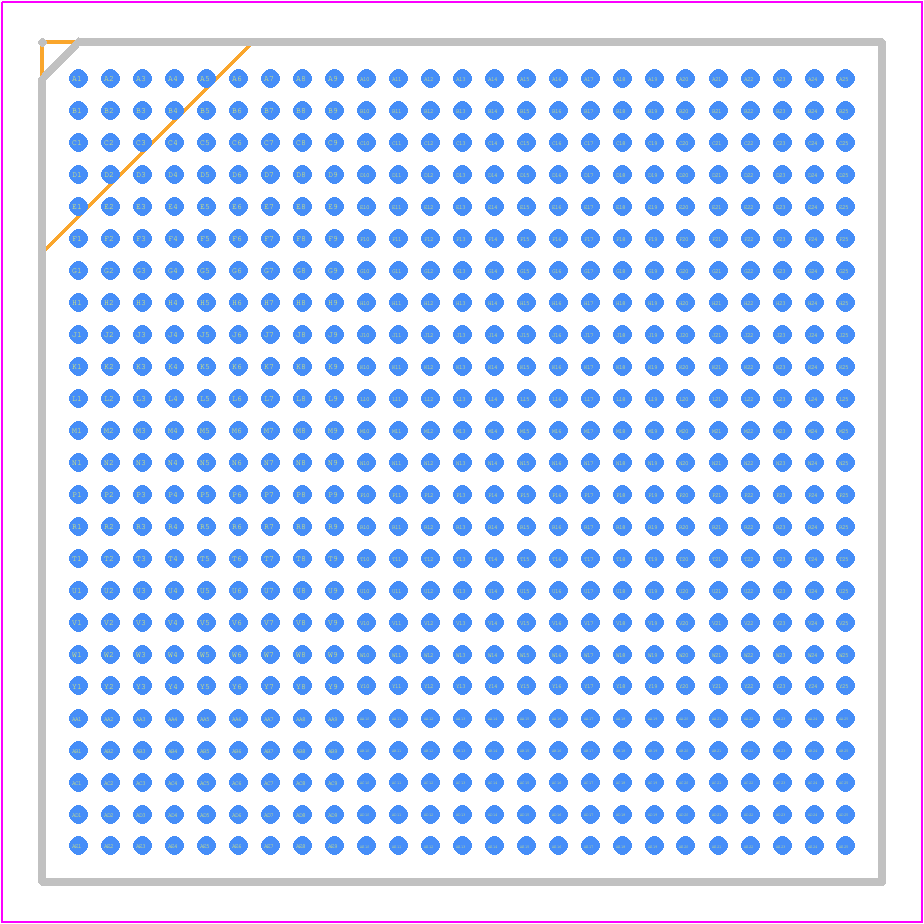

LS1024ASN7MLA - NXP PCB footprint - BGA - BGA - SOT1658-1
click to zoom
3D Models
LS1024ASN7MLA - NXP  - 3D model - BGA - SOT1658-1
click to zoom

LS1024ASN7MLA Details

  • Manufacturer Part Number:

    LS1024ASN7MLA

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    BGA-625

  • ECCN Code:

    5A002.A.1

  • HTS Code:

    8542.31.00.01

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    0

  • Address Bus Width:

    26

  • Boundary Scan:

    YES

  • Clock Frequency-Max:

    1200 MHz

  • JESD-30 Code:

    S-PBGA-B625

  • Length:

    21 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    625

  • Operating Temperature-Max:

    70 °C

  • Operating Temperature-Min:

    -10 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    FBGA

  • Package Equivalence Code:

    BGA625,25X25,32

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, FINE PITCH

  • Peak Reflow Temperature (Cel):

    250

  • Seated Height-Max:

    2.67 mm

  • Supply Current-Max:

    1500 mA

  • Supply Voltage-Max:

    1.164 V

  • Supply Voltage-Min:

    1.096 V

  • Supply Voltage-Nom:

    1.13 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    21 mm

  • uPs/uCs/Peripheral ICs Type:

    MULTIFUNCTION PERIPHERAL

LS1024ASN7MLA Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for LS1024ASN7MLA is -40°C to 125°C.
  • The clock source for LS1024ASN7MLA can be configured using the CLK_SEL pins. You can select between an external clock source, an internal oscillator, or a crystal oscillator.
  • The maximum frequency for the LS1024ASN7MLA is 400 MHz.
  • Power management in LS1024ASN7MLA can be implemented using the Power Management Unit (PMU). The PMU provides various power modes, including sleep, deep sleep, and power-down modes.
  • The maximum current consumption of LS1024ASN7MLA is 350 mA.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LS1024ASN7MLA Overview

Use the download button to access the LS1024ASN7MLA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LS102, or try a keyword search, such as Multifunction Peripherals

About NXP

NXP Semiconductors is a leading manufacturer of semiconductor devices with a wide range of semiconductor solutions, including microcontrollers, sensors, connectivity solutions, power management ICs, and security solutions. These products are used in a variety of applications such as automotive, industrial automation, smart homes, mobile devices, and more. NXP Semiconductors is one of the world’s largest semiconductor companies and is headquartered in Eindhoven, the Netherlands.

Parts related to LS1024ASN7MLA

Showing 0 results
