LS1043AXE7QQB - NXP

LS1043AXE7QQB Details

• Manufacturer Part Number:

  LS1043AXE7QQB

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

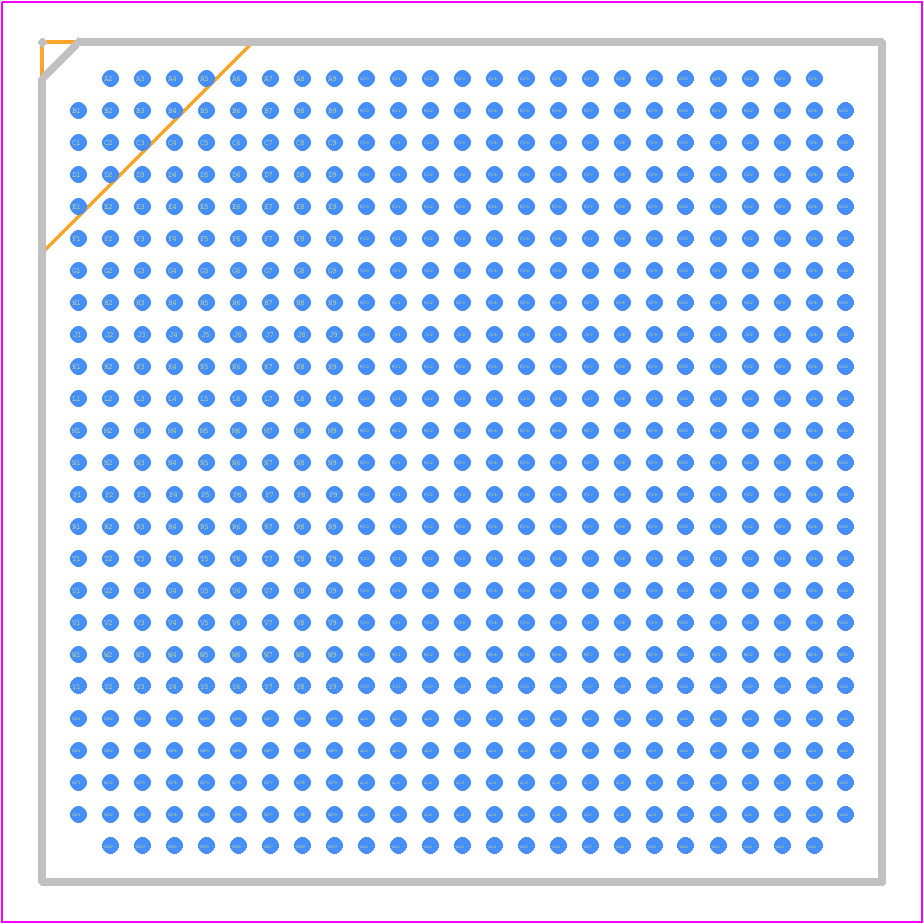

  FCBGA-621

• ECCN Code:

  5A002.A.1

• HTS Code:

  8542.31.00.01

• Manufacturer:

  NXP Semiconductors

• YTEOL:

  9

• Additional Feature:

  ALSO OPERATES AT 1V NOMINAL SUPPLY

• Address Bus Width:

  16

• Bit Size:

  64

• Boundary Scan:

  YES

• External Data Bus Width:

  32

• Format:

  FIXED POINT

• Integrated Cache:

  YES

• JESD-30 Code:

  S-PBGA-B621

• JESD-609 Code:

  e1

• Length:

  21 mm

• Low Power Mode:

  YES

• Moisture Sensitivity Level:

  3

• Number of Terminals:

  621

• Operating Temperature-Max:

  105 °C

• Operating Temperature-Min:

  -40 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  FBGA

• Package Shape:

  SQUARE

• Package Style:

  GRID ARRAY, FINE PITCH

• Peak Reflow Temperature (Cel):

  250

• Seated Height-Max:

  2.07 mm

• Speed:

  1600 MHz

• Supply Voltage-Max:

  0.93 V

• Supply Voltage-Min:

  0.87 V

• Supply Voltage-Nom:

  0.9 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Tin/Silver/Copper (Sn/Ag/Cu)

• Terminal Form:

  BALL

• Terminal Pitch:

  0.8 mm

• Terminal Position:

  BOTTOM

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  21 mm

• uPs/uCs/Peripheral ICs Type:

  SoC
