LS1043AXN8QQB - NXP

Description: ARM® Cortex®-A53 Microprocessor IC QorIQ® Layerscape 4 Core, 64-Bit 1.6GHz 780-FCPBGA (23x23)

Download LS1043AXN8QQB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

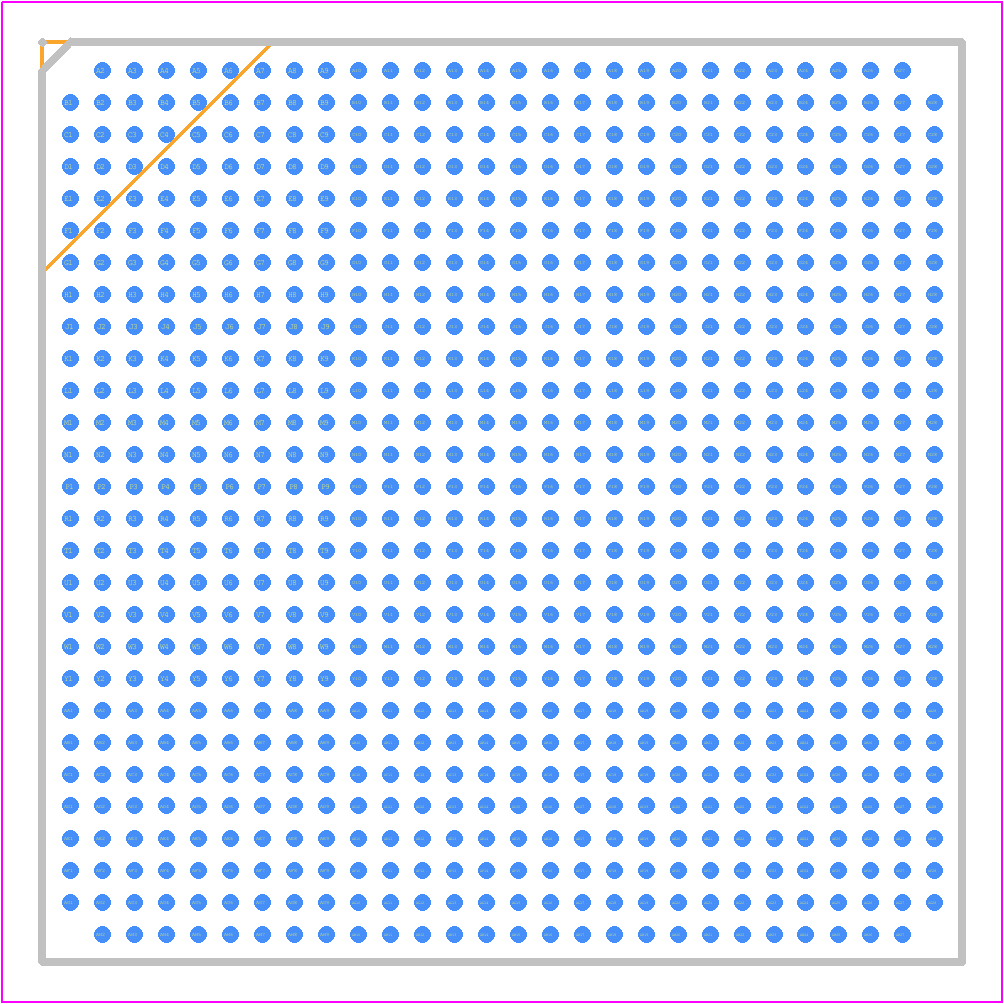

LS1043AXN8QQB - NXP PCB footprint - BGA - BGA - SOT1652-2_2024
click to zoom
3D Models
LS1043AXN8QQB - NXP  - 3D model - BGA - SOT1652-2_2024
click to zoom

LS1043AXN8QQB Details

  • Manufacturer Part Number:

    LS1043AXN8QQB

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    FCBGA-780

  • ECCN Code:

    3A991.A.2

  • HTS Code:

    8542.31.00.01

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    9

  • JESD-30 Code:

    S-PBGA-B780

  • JESD-609 Code:

    e1

  • Length:

    23 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    780

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    FBGA

  • Package Equivalence Code:

    BGA780,28X28,32

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, FINE PITCH

  • Peak Reflow Temperature (Cel):

    250

  • Seated Height-Max:

    2.07 mm

  • Supply Voltage-Max:

    1.03 V

  • Supply Voltage-Min:

    0.97 V

  • Supply Voltage-Nom:

    1 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    23 mm

  • uPs/uCs/Peripheral ICs Type:

    SoC

LS1043AXN8QQB Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the LS1043AXN8QQB is -40°C to 105°C.
  • The DDR memory interface on the LS1043AXN8QQB can be configured using the DDR controller registers. Refer to the LS1043AXN8QQB reference manual for detailed information on configuring the DDR memory interface.
  • The maximum frequency of the CPU on the LS1043AXN8QQB is 1.6 GHz.
  • Secure boot on the LS1043AXN8QQB can be implemented using the Secure Boot mechanism, which involves generating a secure boot key, creating a secure boot image, and configuring the boot mode. Refer to the LS1043AXN8QQB reference manual for detailed information on implementing secure boot.
  • The power consumption of the LS1043AXN8QQB varies depending on the operating frequency, voltage, and other factors. Refer to the LS1043AXN8QQB datasheet for detailed power consumption information.
