LSF0106T16-13 - Diodes Incorporated

Description: Translation - Voltage Levels ULS TSSOP-16 T&R 2.5K

Download LSF0106T16-13 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

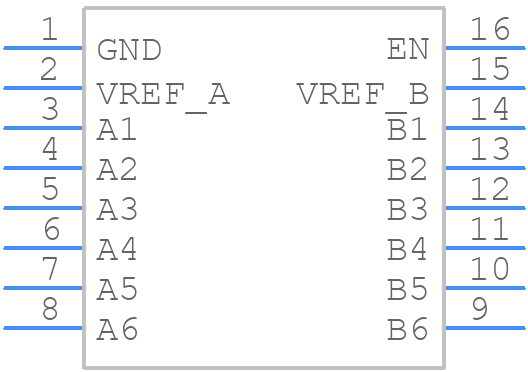

LSF0106T16-13 - Diodes Incorporated - PCB symbol
click to zoom
PCB Footprints
LSF0106T16-13 - Diodes Incorporated PCB footprint - Small Outline Packages - Small Outline Packages - TSSOP-16
click to zoom
3D Models
LSF0106T16-13 - Diodes Incorporated - 3D model - Small Outline Packages - TSSOP-16
click to zoom

LSF0106T16-13 Details

  • Manufacturer Part Number:

    LSF0106T16-13

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Diodes Incorporated

  • Interface IC Type:

    VOLTAGE LEVEL TRANSLATOR

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    Matte Tin (Sn)

  • Time@Peak Reflow Temperature-Max (s):

    30

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LSF0106T16-13 Overview

Use the download button to access the LSF0106T16-13 schematic symbol, PCB footprint, and 3D model.
