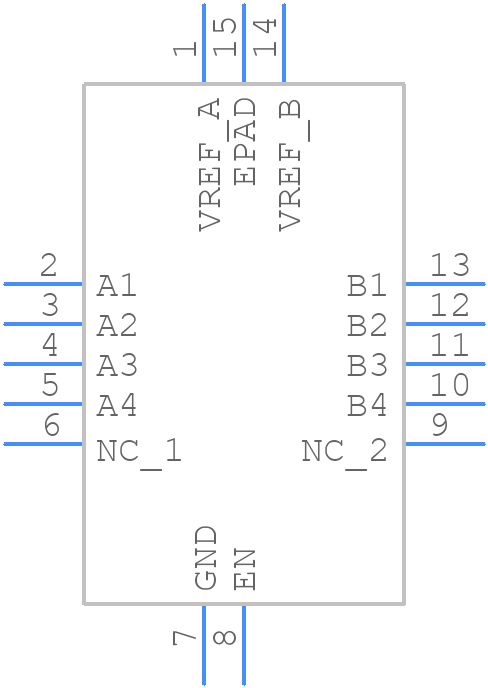

LSF0204ZB14-13 - Diodes Incorporated

LSF0204ZB14-13 Details

• Manufacturer Part Number:

  LSF0204ZB14-13

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  VQFN-14

• Country Of Origin:

  Mainland China

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Manufacturer:

  Diodes Incorporated

• YTEOL:

  9

• Additional Feature:

  IT ALSO HAS PUSH-PULL OUTPUTS

• Delay-Max:

  7.1 ns

• Interface IC Type:

  VOLTAGE LEVEL TRANSLATOR

• JESD-30 Code:

  S-XQCC-N14

• Length:

  3.5 mm

• Moisture Sensitivity Level:

  1

• Number of Bits:

  4

• Number of Functions:

  1

• Number of Terminals:

  14

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -40 °C

• Output Characteristics:

  OPEN-DRAIN

• Output Polarity:

  TRUE

• Package Body Material:

  UNSPECIFIED

• Package Code:

  HVQCCN

• Package Equivalence Code:

  LCC14,14SQ,20

• Package Shape:

  SQUARE

• Package Style:

  CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

• Peak Reflow Temperature (Cel):

  260

• Seated Height-Max:

  0.9 mm

• Supply Voltage-Max:

  4.5 V

• Supply Voltage-Min:

  0.8 V

• Supply Voltage-Nom:

  1 V

• Supply Voltage1-Max:

  5.5 V

• Supply Voltage1-Min:

  1.8 V

• Supply Voltage1-Nom:

  3.3 V

• Surface Mount:

  YES

• Terminal Finish:

  Matte Tin (Sn)

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  QUAD

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  3.5 mm
