LSG T67K-JL-1-0+HK-1-0-2-R18-Z - ams OSRAM

Description: Green, Red 570nm Green, 630nm Red LED Indication - Discrete 1.8V Green, 1.8V Red 4-SMD, J-Lead

Download LSG T67K-JL-1-0+HK-1-0-2-R18-Z Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this LSG T67K-JL-1-0+HK-1-0-2-R18-Z model

Email notifications will be applied after download.

Send part feedback

Symbol

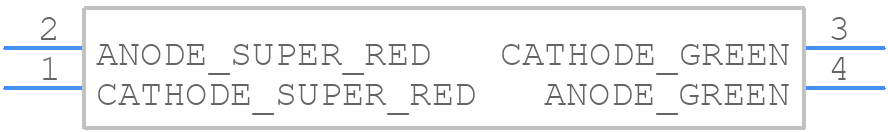

LSG T67K-JL-1-0+HK-1-0-2-R18-Z - ams OSRAM - PCB symbol

PCB Footprints

LSG T67K-JL-1-0+HK-1-0-2-R18-Z - ams OSRAM PCB footprint - Other - Other - LSG T67K-JL-1-0+HK-1-0-2-R18-Z-2

Datasheet Download Datasheet
Stock & Prices Price & Stock for LSG T67K-JL-1-0+HK-1-0-2-R18-Z
Part Number LSG T67K-JL-1-0+HK-1-0-2-R18-Z
Manufacturer ams OSRAM
Pin Count 4
Part Category LED (Multiple)
Package Category Other
Footprint Name Other - LSG T67K-JL-1-0+HK-1-0-2-R18-Z-2
Released Date Jul 16, 2026
Last Modified Date Jul 16, 2026 7:28 AM UTC
Pinout / Pin List Click Here (Member Only)

LSG T67K-JL-1-0+HK-1-0-2-R18-Z Details

Manufacturer Part Number:
LSG T67K-JL-1-0+HK-1-0-2-R18-Z
Manufacturer:
ams OSRAM Group

Trust Checks

Community Provided

System Verified

Community Approved

LSG T67K-JL-1-0+HK-1-0-2-R18-Z Overview

Use the download button to access the LSG T67K-JL-1-0+HK-1-0-2-R18-Z schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like LSG T, or try a keyword search, such as Visible LEDs
