LSM303AHTR - STMicroelectronics

Description: Ultra-compact high-performance eCompass module: ultra-low-power 3D accelerometer and 3D magnetometer

Download LSM303AHTR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

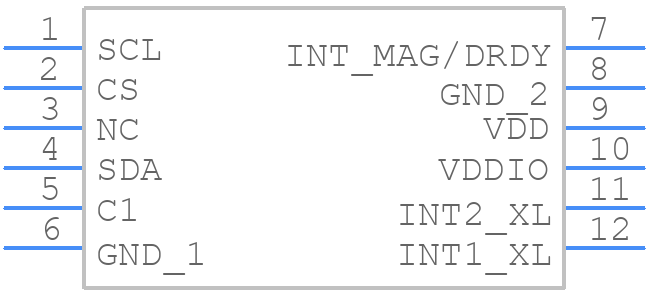

LSM303AHTR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
LSM303AHTR - STMicroelectronics PCB footprint - Other - Other - LGA-12
click to zoom
3D Models
LSM303AHTR - STMicroelectronics - 3D model - Other - LGA-12
click to zoom

LSM303AHTR Details

  • Manufacturer Part Number:

    LSM303AHTR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    LGA-12

  • Manufacturer Package Code:

    LGA 2X2X1 12LD PITCH 0.5MM

  • Country Of Origin:

    Malta

  • ECCN Code:

    EAR99

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    S-PBGA-B12

  • JESD-609 Code:

    e4

  • Length:

    2 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VFLGA

  • Package Equivalence Code:

    LCC12,.08SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    1.98 V

  • Supply Voltage-Min (Vsup):

    1.71 V

  • Supply Voltage-Nom (Vsup):

    1.8 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    BUTT

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    BOTTOM

  • Width:

    2 mm

LSM303AHTR Frequently Asked Questions (FAQs)

  • The recommended power-on sequence is to power up the accelerometer (ACC) first, followed by the magnetometer (MAG). This ensures proper initialization and avoids any potential issues with the device.
  • The LSM303AHTR has multiple operating modes, including low-power, normal, and high-resolution modes. The mode selection is done through the CTRL_REG1 and CTRL_REG2 registers. Refer to the datasheet for specific register settings and mode descriptions.
  • The internal low-pass filter helps to reduce noise and aliasing effects in the accelerometer and magnetometer outputs. It can be enabled or disabled through the CTRL_REG1 register. The filter cutoff frequency is approximately 220 Hz.
  • The magnetometer requires calibration to compensate for hard-iron and soft-iron effects. This can be done through a process called 'hard-iron calibration' and 'soft-iron calibration'. Refer to application notes and example code from STMicroelectronics for guidance on the calibration process.
  • The maximum sampling rate of the LSM303AHTR is 10 kHz for the accelerometer and 80 Hz for the magnetometer. However, the actual sampling rate may be limited by the host system's I2C or SPI bus speed.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LSM303AHTR Overview

Use the download button to access the LSM303AHTR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LSM30, or try a keyword search, such as Other Signal Circuits

About STMicroelectronics

STMicroelectronics (ST) is a global semiconductor company that designs, manufactures, and markets a broad range of integrated circuits (ICs), discrete devices, and other electronic components. STMicroelectronics offers a diverse portfolio of semiconductor products covering a wide range of applications and industries. Their product categories include microcontrollers, analog and mixed-signal ICs, MEMS (Micro-Electro-Mechanical Systems) sensors, power management ICs, RF (Radio Frequency) transceivers, aut
