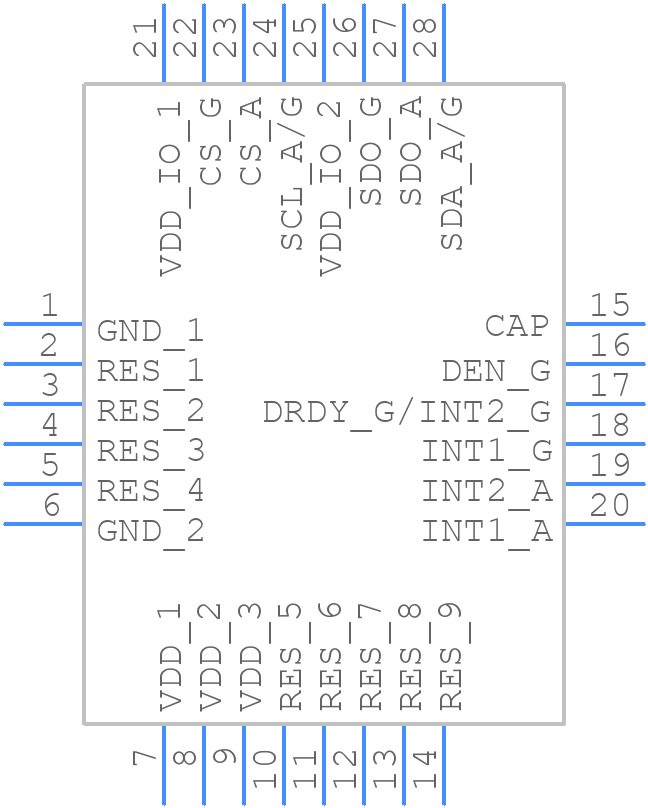

Symbol
PCB Footprints
- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for LSM330DLC
- Part Number LSM330DLC
- Manufacturer STMicroelectronics
- Pin Count 28
- Part Category Integrated Circuit
- Package Category Pull-back Quad Flat No-lead
- Footprint Name Pull-back Quad Flat No-lead - LGA-28 (4x5x1.1 mm)
- Released Date Aug 20, 2015
- Last Modified Date Jan 8, 2026 2:31 PM UTC
- Pinout / Pin List Click Here (Member Only)
LSM330DLC Details
-
Manufacturer Part Number:
LSM330DLC
-
Brand Name:
STMicroelectronics
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Obsolete
-
Part Package Code:
LGA
-
Package Description:
4 X 5 MM, 1.10 MM HEIGHT, GREEN, PLASTIC, LGA-28
-
Pin Count:
28
-
HTS Code:
8542.39.00.01
-
Manufacturer:
STMicroelectronics
-
YTEOL:
0
-
Analog IC - Other Type:
ANALOG CIRCUIT
LSM330DLC Frequently Asked Questions (FAQs)
-
The recommended power-on sequence is to first apply VDDIO, then VDD, and finally enable the device by setting the CS pin low. This ensures proper initialization and prevents unwanted behavior.
-
To configure the LSM330DLC for low-power mode, set the LPEN bit in the CTRL_REG1 register to 1. This reduces the current consumption to approximately 10 μA. Additionally, you can adjust the ODR (Output Data Rate) to a lower value to further reduce power consumption.
-
The INT1 and INT2 pins are interrupt pins that can be configured to generate interrupts based on specific events, such as exceeding a certain acceleration threshold or detecting a free-fall event. You can configure the interrupt sources and thresholds using the INT_CFG_REG register.
-
The LSM330DLC does not require calibration in the classical sense. However, you may need to perform a zero-g offset calibration to remove any bias from the sensor readings. This can be done by taking readings with the device at rest and subtracting the resulting values from subsequent readings.
-
The LSM330DLC has a maximum acceleration range of ±16g. However, the device can be configured to operate in a ±2g, ±4g, or ±8g range by setting the FS bit in the CTRL_REG4 register.
Trust Checks
Community Provided
System Verified
Community Approved
LSM330DLC Overview
Use the download button to access the LSM330DLC schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like LSM33,
or try a keyword search, such as Other Signal Circuits
