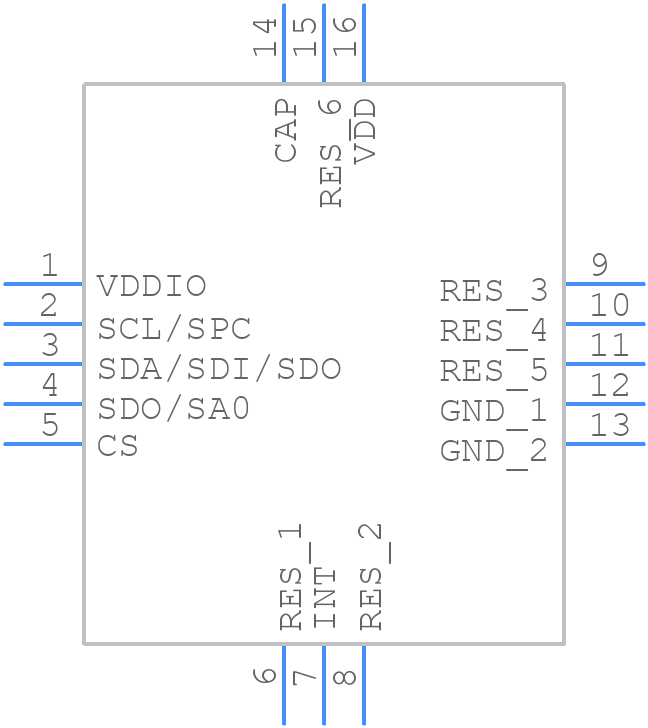

Symbol
PCB Footprints
- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for LSM6DS0
- Part Number LSM6DS0
- Manufacturer STMicroelectronics
- Pin Count 16
- Part Category Integrated Circuit
- Package Category Pull-back Quad Flat No-lead
- Footprint Name Pull-back Quad Flat No-lead - LGA-16_4
- Released Date Jul 9, 2015
- Last Modified Date Jan 8, 2026 2:31 PM UTC
- Pinout / Pin List Click Here (Member Only)
LSM6DS0 Details
-
Manufacturer Part Number:
LSM6DS0
-
Brand Name:
STMicroelectronics
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Obsolete
-
Package Description:
3 X 3 MM, 0.86 MM HEIGHT, GREEN, PLASTIC, LGA-16
-
HTS Code:
8542.39.00.01
-
Manufacturer:
STMicroelectronics
-
YTEOL:
0
-
Analog IC - Other Type:
ANALOG CIRCUIT
-
JESD-30 Code:
S-PBGA-B16
-
Length:
3 mm
LSM6DS0 Frequently Asked Questions (FAQs)
-
The recommended power-on sequence is to power up the device with a stable voltage supply, then wait for at least 10ms before sending any commands or configuring the device.
-
The self-test feature is used to verify the integrity of the sensor's internal signal chain. To use self-test, set the ST1 and ST2 bits in the CTRL3_C register to 1, then read the output of the sensor to verify that the self-test is working correctly.
-
The FIFO buffer is used to store sensor data when the device is operating in FIFO mode. The FIFO buffer can store up to 4096 bytes of data, and can be used to reduce the number of interrupts generated by the device.
-
To configure the LSM6DS0 for low-power operation, set the LP_MODE bit in the CTRL1_XL register to 1. This will reduce the power consumption of the device, but may also reduce the accuracy of the sensor data.
-
The high-pass filter is used to remove gravity and other low-frequency signals from the sensor data, while the low-pass filter is used to remove high-frequency noise from the sensor data. The high-pass filter is typically used for applications such as gesture recognition, while the low-pass filter is typically used for applications such as motion tracking.
Trust Checks
Community Provided
System Verified
Community Approved
LSM6DS0 Overview
Use the download button to access the LSM6DS0 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like LSM6D,
or try a keyword search, such as Other Signal Circuits
