LSM6DS0TR - STMicroelectronics

Description: STMICROELECTRONICS - LSM6DS0TR - ACC/GYRO, 3D, 16G, 2000DPS, LGA-16

Download LSM6DS0TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

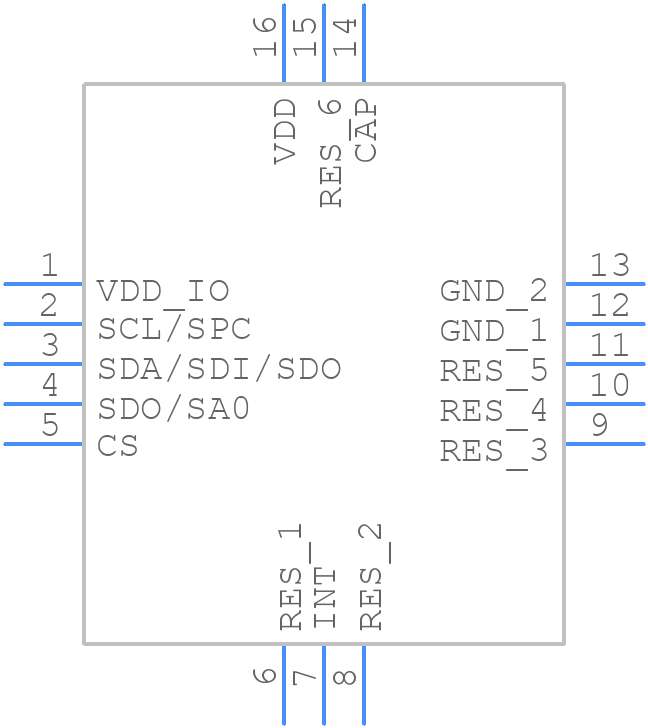

LSM6DS0TR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
LSM6DS0TR - STMicroelectronics PCB footprint - Other - Other - LGA (3x3x1.0-16L)
click to zoom
3D Models
LSM6DS0TR - STMicroelectronics - 3D model - Other - LGA (3x3x1.0-16L)
click to zoom

LSM6DS0TR Details

  • Manufacturer Part Number:

    LSM6DS0TR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    3 X 3 MM, 0.86 MM HEIGHT, GREEN, PLASTIC, LGA-16

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    S-PBGA-B16

  • Length:

    3 mm

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VFLGA

  • Package Equivalence Code:

    LGA16,1X1,20

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Seated Height-Max:

    0.86 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    1.71 V

  • Supply Voltage-Nom (Vsup):

    2.2 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    BUTT

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    3 mm

LSM6DS0TR Frequently Asked Questions (FAQs)

  • The recommended power-on sequence is to power up the device with the CS pin high, then bring the SCL pin high, and finally bring the SDA pin high. This ensures proper initialization of the device.
  • To configure the LSM6DS0TR for low-power mode, set the LP_EN bit in the CTRL3_C register to 1. This will reduce the power consumption of the device. Additionally, you can also set the ODR (Output Data Rate) to a lower value to further reduce power consumption.
  • The maximum frequency of the I2C interface of the LSM6DS0TR is 400 kHz. However, it is recommended to use a frequency of 100 kHz or lower to ensure reliable communication.
  • The LSM6DS0TR generates interrupts on the INT1 pin when certain events occur, such as data ready or FIFO threshold reached. To handle interrupts, connect the INT1 pin to a GPIO pin on your microcontroller and configure the microcontroller to detect the interrupt. Then, read the INT_SRC register to determine the cause of the interrupt and take appropriate action.
  • The FIFO buffer in the LSM6DS0TR is used to store accelerometer and gyroscope data. It allows the device to continue collecting data even when the microcontroller is busy with other tasks. The FIFO buffer can be configured to store up to 4000 samples.
