LSM6DS3TR-C - STMicroelectronics

Description: STMicroelectronics iNEMO inertial module: 3D accelerometer and 3D gyroscope

Download LSM6DS3TR-C Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

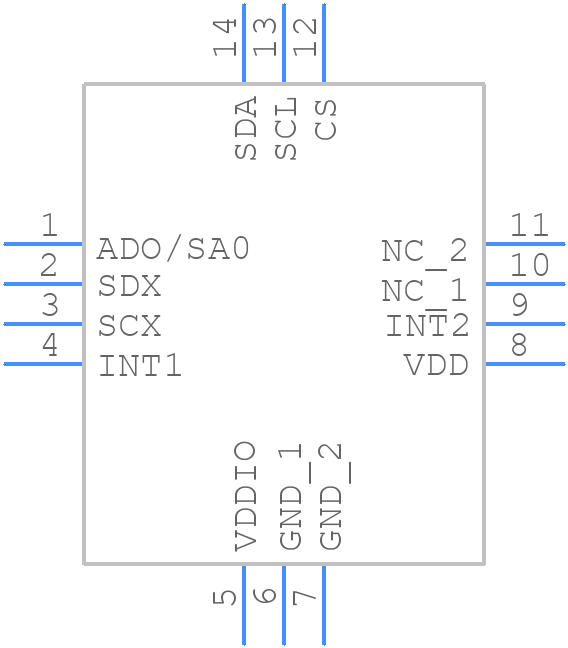

LSM6DS3TR-C - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
LSM6DS3TR-C - STMicroelectronics PCB footprint - Other - Other - LGA-14(2.5x3x0.86)
click to zoom
3D Models
LSM6DS3TR-C - STMicroelectronics - 3D model - Other - LGA-14(2.5x3x0.86)
click to zoom

LSM6DS3TR-C Details

  • Manufacturer Part Number:

    LSM6DS3TR-C

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LGA-14

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • Date Of Intro:

    2017-02-27

  • Manufacturer:

    STMicroelectronics

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    R-PBGA-B14

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VFLGA

  • Package Equivalence Code:

    LGA14,1X1,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.86 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    1.71 V

  • Supply Voltage-Nom (Vsup):

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    BUTT

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    BOTTOM

  • Width:

    2.5 mm

LSM6DS3TR-C Frequently Asked Questions (FAQs)

  • The recommended power-on sequence is to first power up the VDDIO pin, followed by the VDD pin. This ensures that the internal regulators are properly enabled before the device starts operating.
  • To configure the LSM6DS3TR-C for low-power mode, set the LP_MODE bit in the CTRL3_C register to '1'. This reduces the current consumption of the device. Additionally, you can also adjust the ODR (Output Data Rate) and the bandwidth of the sensor to further reduce power consumption.
  • The INT1 and INT2 pins are interrupt pins that can be configured to generate interrupts based on specific events, such as data ready, FIFO threshold, or sensor thresholds. These interrupts can be used to wake up a microcontroller from sleep mode or to trigger specific actions.
  • The LSM6DS3TR-C does not require calibration in the classical sense. However, it is recommended to perform a self-test procedure to verify the sensor's functionality and to adjust the offset and sensitivity of the sensor if necessary. The self-test procedure is described in the datasheet.
  • The maximum frequency of the I2C interface on the LSM6DS3TR-C is 400 kHz in standard mode and 1 MHz in fast mode.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LSM6DS3TR-C Overview

Use the download button to access the LSM6DS3TR-C schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LSM6D, or try a keyword search, such as Other Signal Circuits

About STMicroelectronics

STMicroelectronics (ST) is a global semiconductor company that designs, manufactures, and markets a broad range of integrated circuits (ICs), discrete devices, and other electronic components. STMicroelectronics offers a diverse portfolio of semiconductor products covering a wide range of applications and industries. Their product categories include microcontrollers, analog and mixed-signal ICs, MEMS (Micro-Electro-Mechanical Systems) sensors, power management ICs, RF (Radio Frequency) transceivers, aut
