- Stock & Prices $ Price & Stock for LSM6DS3TR
- Part Number LSM6DS3TR
- Manufacturer STMicroelectronics
- Pin Count 14
- Part Category Accelerometer
- Package Category Other
- Footprint Name Other - LSM6DS3TR-2
- Released Date Sep 16, 2020
- Last Modified Date Mar 28, 2023 5:22 AM UTC
- Pinout / Pin List Click Here (Member Only)
LSM6DS3TR Details
-
Manufacturer Part Number:
LSM6DS3TR
-
Brand Name:
STMicroelectronics
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Obsolete
-
Package Description:
LGA-14
-
ECCN Code:
EAR99
-
Manufacturer:
STMicroelectronics
-
YTEOL:
0
-
Analog IC - Other Type:
ANALOG CIRCUIT
-
JESD-30 Code:
R-PBGA-BU14
-
JESD-609 Code:
e4
LSM6DS3TR Frequently Asked Questions (FAQs)
-
The recommended power-on sequence is to power up the device with a stable voltage supply, then wait for at least 10ms before sending any commands or configuring the device.
-
The self-test feature is enabled by setting the ST bit in the CTRL3_C register. During self-test, the device generates a known acceleration and angular rate signal, which can be used to verify the device's functionality.
-
INT1 and INT2 are programmable interrupt signals that can be configured to generate interrupts based on various events, such as data ready, FIFO threshold, or sensor thresholds. This allows the microcontroller to be notified when new data is available or when a specific condition is met.
-
The FIFO mode is configured by setting the FIFO_EN bit in the CTRL4_C register. The FIFO can be configured in various modes, including FIFO, stream, and bypass modes, depending on the application requirements.
-
The recommended approach for calibrating the LSM6DS3TR is to perform a sensor offset calibration by taking measurements at multiple orientations and temperatures, and then applying the calculated offsets to the sensor data.
Trust Checks
Expert Contribution
System Verified
Community Approved
LSM6DS3TR Overview

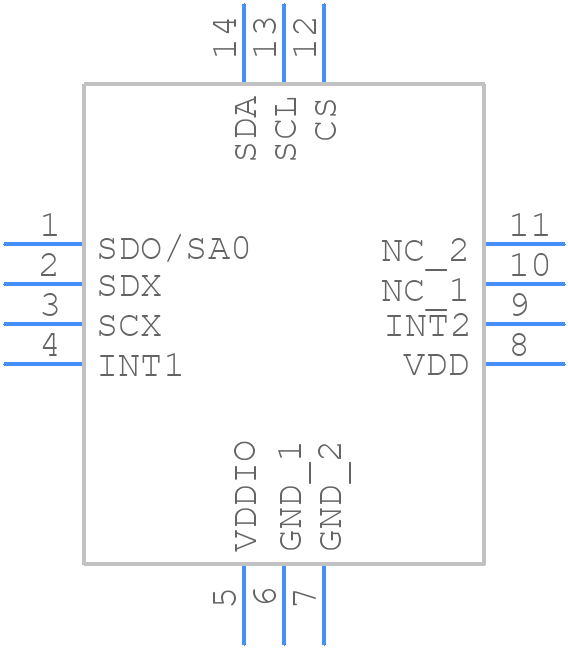

Use the download button to access the LSM6DS3TR schematic symbol, PCB footprint, and 3D model.
