LSM6DSOTR - STMicroelectronics

Description: 6-axis IMU (inertial measurement unit): always-on 3‑axis accelerometer and 3‑axis gyroscope

Download LSM6DSOTR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

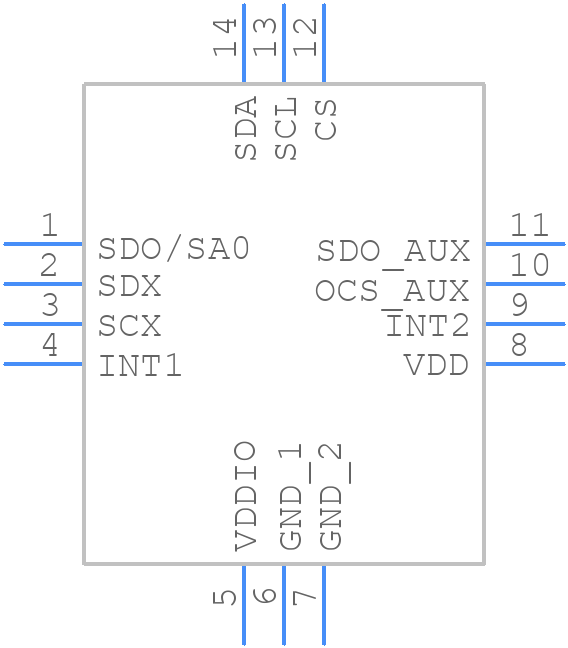

LSM6DSOTR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
LSM6DSOTR - STMicroelectronics PCB footprint - Other - Other - LGA-14(2.5x3x0.86)
click to zoom
3D Models
LSM6DSOTR - STMicroelectronics - 3D model - Other - LGA-14(2.5x3x0.86)
click to zoom

LSM6DSOTR Details

  • Manufacturer Part Number:

    LSM6DSOTR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LGA-14

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • Manufacturer:

    STMicroelectronics

  • Body Breadth:

    2.5 mm

  • Body Height:

    0.86 mm

  • Body Length or Diameter:

    3 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Range:

    0.2-1.42V

  • Output Type:

    DIGITAL VOLTAGE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape/Style:

    RECTANGULAR

  • Sensors/Transducers Type:

    ACCELEROMETER/GYROSCOPE

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    1.71 V

  • Surface Mount:

    YES

LSM6DSOTR Frequently Asked Questions (FAQs)

  • The recommended power-on sequence is to power up the device with a stable voltage supply, then wait for at least 10ms before configuring the device. This allows the internal voltage regulators to stabilize.
  • The interrupt signals from the LSM6DSOTR are active-low and open-drain. You should use an external pull-up resistor to connect the interrupt pin to the microcontroller's GPIO pin. The interrupt signal is triggered when the device detects an event, such as a tap or a gesture.
  • The self-test feature is used to verify the integrity of the sensor's internal signal chain. It can be used to detect any faults or defects in the sensor. The self-test feature is not intended for normal operation and should only be used during manufacturing or testing.
  • The LSM6DSOTR does not require calibration in the classical sense. However, you may need to perform a one-time offset correction to compensate for any offset errors. This can be done by taking a series of measurements with the device at rest and then subtracting the average value from subsequent measurements.
  • The maximum sampling rate of the LSM6DSOTR is 6.66 kHz for the accelerometer and 1.66 kHz for the gyroscope. However, the actual sampling rate may be limited by the bandwidth of the I2C or SPI interface.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LSM6DSOTR Overview

Use the download button to access the LSM6DSOTR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LSM6D, or try a keyword search, such as Other Sensors/Transducers

About STMicroelectronics

STMicroelectronics (ST) is a global semiconductor company that designs, manufactures, and markets a broad range of integrated circuits (ICs), discrete devices, and other electronic components. STMicroelectronics offers a diverse portfolio of semiconductor products covering a wide range of applications and industries. Their product categories include microcontrollers, analog and mixed-signal ICs, MEMS (Micro-Electro-Mechanical Systems) sensors, power management ICs, RF (Radio Frequency) transceivers, aut
