LSM6DSOXTR - STMicroelectronics

Description: 6-axis IMU (inertial measurement unit) with embedded AI: always-on 3-axis accelerometer and 3-axis gyroscope

Download LSM6DSOXTR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

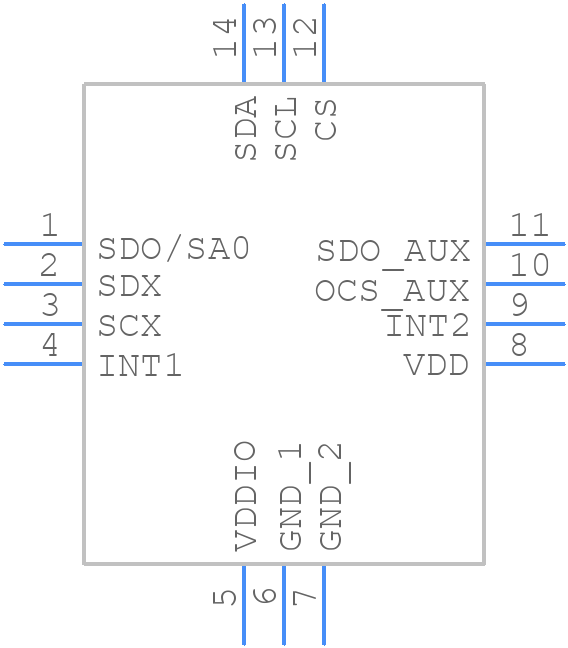

LSM6DSOXTR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
LSM6DSOXTR - STMicroelectronics PCB footprint - Other - Other - LGA-14_1
click to zoom
3D Models
LSM6DSOXTR - STMicroelectronics - 3D model - Other - LGA-14_1
click to zoom

LSM6DSOXTR Details

  • Manufacturer Part Number:

    LSM6DSOXTR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LGA-14

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    18 Weeks

  • Date Of Intro:

    2019-01-28

  • Manufacturer:

    STMicroelectronics

  • Body Breadth:

    2.5 mm

  • Body Height:

    0.86 mm

  • Body Length or Diameter:

    3 mm

  • JESD-609 Code:

    e4

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Range:

    0.2-1.42V

  • Output Type:

    DIGITAL VOLTAGE

  • Package Body Material:

    PLASTIC

  • Package Equivalence Code:

    LGA14,4X5,20

  • Package Shape/Style:

    RECTANGULAR

  • Sensors/Transducers Type:

    ACCELEROMETER/GYROSCOPE

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    1.71 V

  • Surface Mount:

    YES

  • Technology:

    MEMS

  • Terminal Finish:

    Nickel/Gold (Ni/Au) - electrolytic

LSM6DSOXTR Frequently Asked Questions (FAQs)

  • The recommended power-on sequence is to power up the VDDIO pin first, followed by the VDD pin. This ensures that the internal regulators are properly initialized.
  • To configure the LSM6DSOXTR for low-power mode, set the LP_MODE bit in the CTRL3_C register to 1. This reduces the current consumption of the device.
  • The INT1 and INT2 pins are interrupt pins that can be configured to generate interrupts based on specific events, such as data ready, FIFO threshold, or sensor interrupts.
  • The LSM6DSOXTR does not require calibration. It is a self-contained sensor with internal calibration and compensation. However, it is recommended to perform a one-time calibration procedure during production to optimize the sensor's performance.
  • The maximum sampling rate of the LSM6DSOXTR is 6.66 kHz for the accelerometer and 3.33 kHz for the gyroscope.
