LSM6DSV16BXTR - STMicroelectronics

Description: 6-axis IMU (inertial measurement unit) with embedded sensor fusion, AI, Qvar and hearable features for TWS

Download LSM6DSV16BXTR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

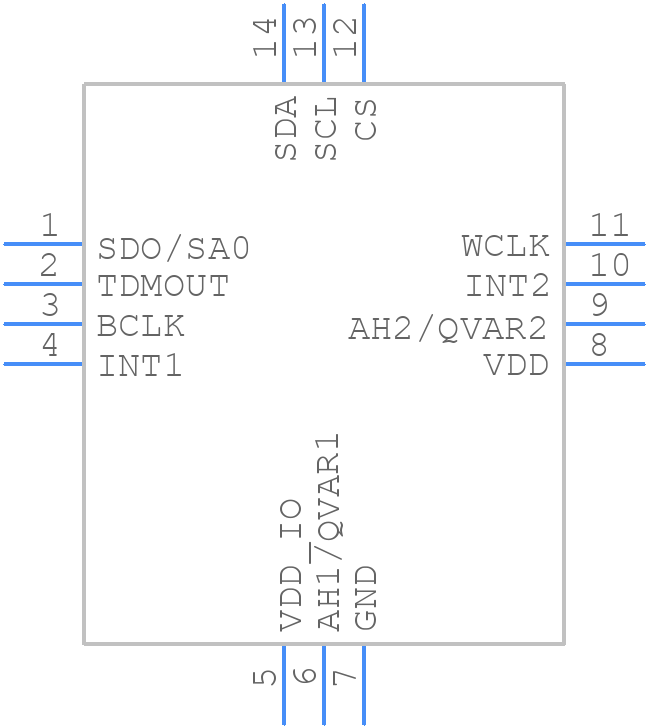

LSM6DSV16BXTR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
LSM6DSV16BXTR - STMicroelectronics PCB footprint - Other - Other - LGA-14L 2.5 x 3.0 x 0.74 mm XDM)
click to zoom
3D Models
LSM6DSV16BXTR - STMicroelectronics - 3D model - Other - LGA-14L 2.5 x 3.0 x 0.74 mm XDM)
click to zoom

LSM6DSV16BXTR Details

  • Manufacturer Part Number:

    LSM6DSV16BXTR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LGA-14

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    STMicroelectronics

  • Additional Feature:

    SEATED HGT MAX

  • Body Breadth:

    2.5 mm

  • Body Height:

    0.74 mm

  • Body Length or Diameter:

    3 mm

  • JESD-609 Code:

    e4

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    DIGITAL

  • Output Range:

    0.20-1.60V

  • Output Type:

    DIGITAL VOLTAGE

  • Package Body Material:

    PLASTIC

  • Package Equivalence Code:

    LCC14,.1X.12,20

  • Package Shape/Style:

    RECTANGULAR

  • Sensors/Transducers Type:

    ACCELEROMETER/GYROSCOPE

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    1.71 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Gold (Ni/Au) - electrolytic

LSM6DSV16BXTR Frequently Asked Questions (FAQs)

  • The recommended power-on sequence is to power up the VDDIO pin first, followed by the VDD pin. This ensures that the internal regulators are properly enabled before the device becomes active.
  • To configure the LSM6DSV16BXTR for low-power mode, set the LP_MODE bit in the CTRL1_XL register to '1'. This reduces the power consumption of the accelerometer and gyroscope.
  • The maximum sampling rate of the LSM6DSV16BXTR is 6.66 kHz for the accelerometer and 3.33 kHz for the gyroscope.
  • Calibration of the LSM6DSV16BXTR involves performing a series of movements to exercise the accelerometer and gyroscope, and then using the resulting data to calculate the sensitivity and offset values. The exact calibration procedure may vary depending on the specific application and requirements.
  • The INT1 and INT2 pins are interrupt pins that can be configured to generate interrupts based on specific events, such as data ready, FIFO threshold, or motion detection. These interrupts can be used to wake up a microcontroller or trigger specific actions.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LSM6DSV16BXTR Overview

Use the download button to access the LSM6DSV16BXTR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LSM6D, or try a keyword search, such as Other Sensors/Transducers
