LSM6DSV16XTR - STMicroelectronics

Description: iNEMO 3D accelerometer and 3D gyroscope: always-on inertial module with embedded machine learning core and Qvar electrostatic sensor

Download LSM6DSV16XTR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

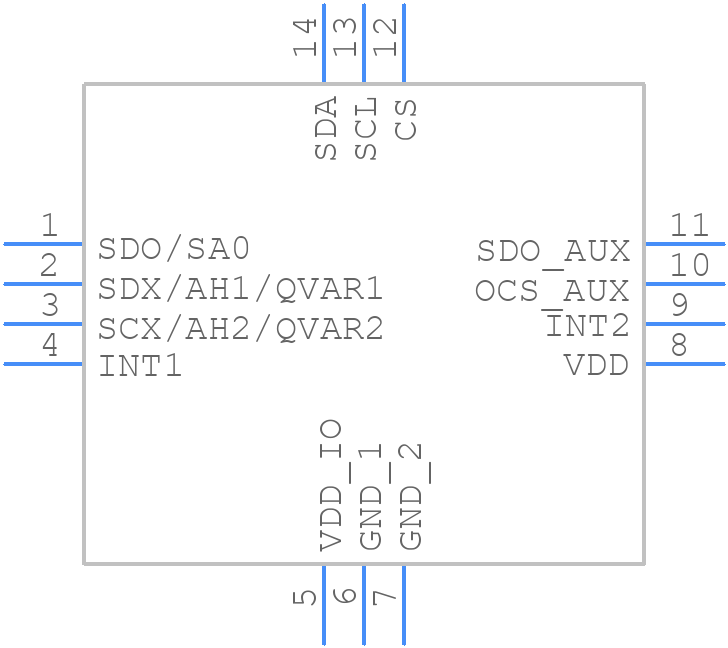

LSM6DSV16XTR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
LSM6DSV16XTR - STMicroelectronics PCB footprint - Other - Other - LGA-14L 2.5 x 3.0 x 0.74 mm XDM)-1
click to zoom
3D Models
LSM6DSV16XTR - STMicroelectronics - 3D model - Other - LGA-14L 2.5 x 3.0 x 0.74 mm XDM)-1
click to zoom

LSM6DSV16XTR Details

  • Manufacturer Part Number:

    LSM6DSV16XTR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LGA-14

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    STMicroelectronics

  • Accuracy-Max (%):

    3%

  • Body Breadth:

    2.5 mm

  • Body Height:

    0.86 mm

  • Body Length or Diameter:

    3 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Range:

    0.2-1.6V

  • Output Type:

    DIGITAL VOLTAGE

  • Package Equivalence Code:

    LGA14,4X5,20

  • Package Shape/Style:

    RECTANGULAR

  • Sensors/Transducers Type:

    ACCELEROMETER/GYROSCOPE

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    1.71 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Gold (Ni/Au)

LSM6DSV16XTR Frequently Asked Questions (FAQs)

  • The recommended power-on sequence is to power up the VDDIO pin first, followed by the VDD pin. This ensures that the internal regulators are properly initialized.
  • To configure the LSM6DSV16XTR for low-power mode, set the LP_MODE bit in the CTRL1_XL register to '1'. This reduces the power consumption of the accelerometer and gyroscope.
  • The maximum sampling rate of the LSM6DSV16XTR is 6.66 kHz for the accelerometer and 3.33 kHz for the gyroscope.
  • Calibration of the LSM6DSV16XTR involves performing a series of movements to capture the sensor's output at different orientations. The calibration process can be done using the STMicroelectronics-provided software tools or by implementing a custom calibration routine.
  • The INT1 and INT2 pins are interrupt pins that can be configured to generate interrupts based on specific events, such as data ready, FIFO threshold, or sensor thresholds.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LSM6DSV16XTR Overview

Use the download button to access the LSM6DSV16XTR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LSM6D, or try a keyword search, such as Other Sensors/Transducers
