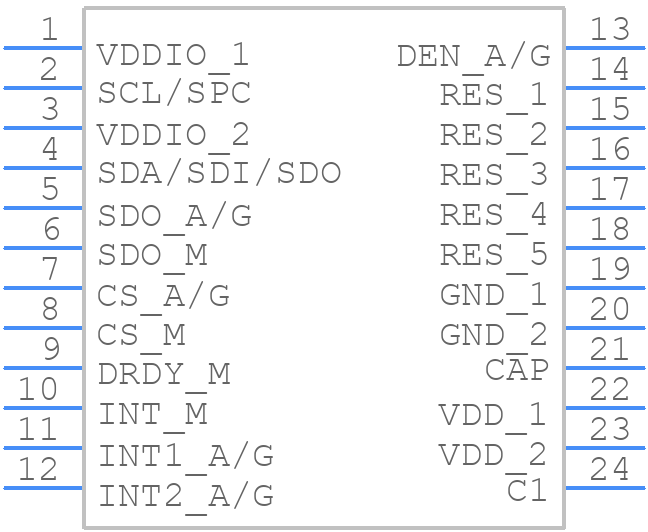

LSM9DS1 - STMicroelectronics

LSM9DS1 Frequently Asked Questions (FAQs)

• What is the recommended power-on sequence for the LSM9DS1?
  The recommended power-on sequence is to power up the accelerometer and gyroscope first, followed by the magnetometer. This is because the magnetometer requires a stable accelerometer and gyroscope to function correctly.
• How do I handle the different sensitivity scales for the accelerometer, gyroscope, and magnetometer?
  The sensitivity scales for each sensor can be set using the corresponding register settings. For example, the accelerometer sensitivity can be set to ±2g, ±4g, ±8g, or ±16g using the CTRL_REG2_XM register. Similarly, the gyroscope sensitivity can be set to ±245dps, ±500dps, or ±2000dps using the CTRL_REG4_G register. The magnetometer sensitivity is fixed at ±4gauss.
• What is the purpose of the temperature sensor in the LSM9DS1?
  The temperature sensor is used to compensate for temperature-related drift in the accelerometer, gyroscope, and magnetometer readings. The temperature data can be used to perform temperature compensation and improve the overall accuracy of the sensor readings.
• How do I handle the FIFO (First-In-First-Out) buffer in the LSM9DS1?
  The FIFO buffer is used to store sensor data when the sensor is operating in FIFO mode. The FIFO buffer can be configured to store a specific number of samples, and the sensor data can be read from the FIFO buffer using the FIFO_CTRL_REG register. It's important to regularly read and clear the FIFO buffer to avoid overflow and ensure accurate sensor readings.
• What is the difference between the 'high-pass' and 'low-pass' filters in the LSM9DS1?
  The high-pass filter is used to remove low-frequency noise and drift from the sensor readings, while the low-pass filter is used to remove high-frequency noise and aliasing. The high-pass filter is typically used for applications that require high accuracy and low noise, such as gesture recognition, while the low-pass filter is used for applications that require high bandwidth and low latency, such as gaming and robotics.
