LT1016IS8#TRPBF - Analog Devices

Description: 20mA, -40°C ~ 85°C, UltraFast Precision 10ns Comparator with Latch CMOS, Complementary, TTL 8-SO

Download LT1016IS8#TRPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

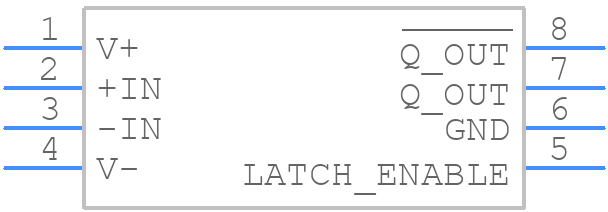

LT1016IS8#TRPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT1016IS8#TRPBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - S8 Package
click to zoom
3D Models
LT1016IS8#TRPBF - Analog Devices - 3D model - Small Outline Packages - S8 Package
click to zoom

LT1016IS8#TRPBF Details

  • Manufacturer Part Number:

    LT1016IS8#TRPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1610 (S8)

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Amplifier Type:

    COMPARATOR

  • Average Bias Current-Max (IIB):

    13 µA

  • Input Offset Voltage-Max:

    3500 µV

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9025 mm

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage Limit-Max:

    -7 V

  • Neg Supply Voltage-Nom (Vsup):

    -5 V

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Type:

    TOTEM POLE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.24

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Response Time-Nom:

    10 ns

  • Seated Height-Max:

    1.752 mm

  • Supply Current-Max:

    35 mA

  • Supply Voltage Limit-Max:

    7 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.899 mm

LT1016IS8#TRPBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT1016IS8 involves keeping the input and output traces short and separate, using a solid ground plane, and placing the input and output capacitors close to the device. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure stability, it's essential to follow the recommended compensation network and component values, and to ensure that the feedback loop has a sufficient phase margin. Additionally, the output capacitor should be chosen to ensure that the output impedance is low enough to prevent oscillations.
  • The maximum power dissipation of the LT1016IS8 is dependent on the package type and the ambient temperature. The maximum power dissipation can be calculated using the formula: Pd = (Vin - Vout) x Iout. The device's thermal resistance (θJA) and the maximum junction temperature (TJ) should also be considered.
  • The LT1016IS8 is rated for operation up to 125°C, but the device's performance and reliability may degrade at high temperatures. It's essential to consider the device's thermal characteristics and to ensure that the device is properly heat-sinked and cooled in high-temperature applications.
  • The LT1016IS8 has built-in overcurrent protection, but it's still essential to add external protection circuitry to prevent damage from overvoltage and overcurrent conditions. This can include adding voltage clamps, current limiters, and fuses to prevent damage to the device and the surrounding circuitry.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LT1016IS8#TRPBF Overview

Use the download button to access the LT1016IS8#TRPBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LT101, or try a keyword search, such as Comparators
