LT1018CN8#PBF - Analog Devices

Description: Analog Comparators Micropower Dual Comparator

Download LT1018CN8#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

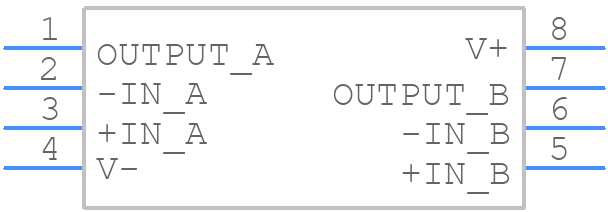

LT1018CN8#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT1018CN8#PBF - Analog Devices PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - N8 Package 8-Lead PDIP (Narrow .300 Inch)
click to zoom
3D Models
LT1018CN8#PBF - Analog Devices - 3D model - Dual-In-Line Packages - N8 Package 8-Lead PDIP (Narrow .300 Inch)
click to zoom

LT1018CN8#PBF Details

  • Manufacturer Part Number:

    LT1018CN8#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    0.300 INCH, LEAD FREE, PLASTIC, DIP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1510 (N8)

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Amplifier Type:

    COMPARATOR

  • Average Bias Current-Max (IIB):

    0.1 µA

  • Input Offset Voltage-Max:

    1400 µV

  • JESD-30 Code:

    R-PDIP-T8

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage Limit-Max:

    -20 V

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    70 °C

  • Output Type:

    OPEN-COLLECTOR

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    3.937 mm

  • Supply Voltage Limit-Max:

    40 V

  • Supply Voltage-Nom (Vsup):

    4.5 V

  • Surface Mount:

    NO

  • Technology:

    BIPOLAR

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.62 mm

LT1018CN8#PBF Frequently Asked Questions (FAQs)

  • The maximum power dissipation of the LT1018CN8 is 1.4W, which is calculated based on the maximum junction temperature (150°C) and thermal resistance (125°C/W) specified in the datasheet.
  • To ensure stability, it's essential to follow the recommended capacitor values and types, as well as the PCB layout guidelines, as specified in the datasheet. Additionally, the output capacitor should have a low equivalent series resistance (ESR) and be placed close to the output pin.
  • The minimum input voltage required for the LT1018CN8 to operate is 3.5V, which is the minimum voltage required to maintain regulation. However, the recommended input voltage range is 4.5V to 15V.
  • While the LT1018CN8 is primarily designed as a voltage regulator, it can be used as a current source with some limitations. The device can source up to 150mA, but the output current should be limited to ensure the device does not overheat.
  • To protect the LT1018CN8 from input voltage transients, it's recommended to add a transient voltage suppressor (TVS) diode or a voltage clamp circuit at the input. This will help prevent damage to the device from voltage spikes or surges.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LT1018CN8#PBF Overview

Use the download button to access the LT1018CN8#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LT101, or try a keyword search, such as Comparators

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
