Part Image

LT1020CSW#PBF - Analog Devices

Description: IC REG LIN POS ADJ 125MA 16SOIC

Download LT1020CSW#PBF Model

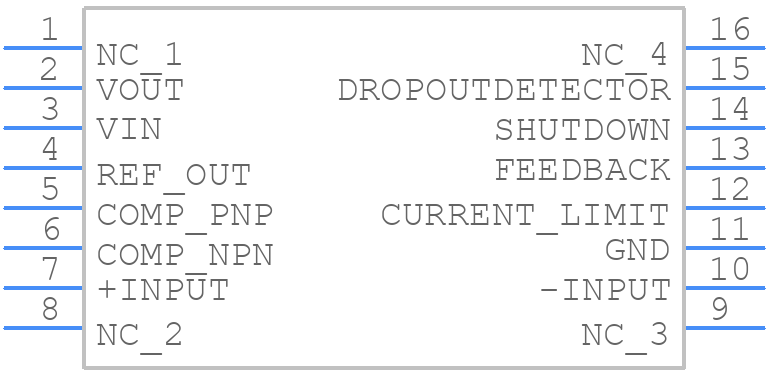

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
LT1020CSW#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - SW(SOP)
click to zoom
3D Models
LT1020CSW#PBF - Analog Devices  - 3D model - Small Outline Packages - SW(SOP)
click to zoom

LT1020CSW#PBF Details

  • Manufacturer Part Number:

    LT1020CSW#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Package Description:

    SOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    05-08-1620 (SW16)

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Malaysia

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    3

  • Adjustability:

    ADJUSTABLE

  • Dropout Voltage1-Nom:

    0.4 V

  • Input-Output Voltage Differential-Max:

    33.5 V

  • Input-Output Voltage Differential-Min:

    2 V

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    10.2995 mm

  • Line Regulation-Max (%/V):

    0.02

  • Load Regulation-Max(%):

    0.4%

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    100 °C

  • Output Current1-Max:

    0.125 A

  • Output Voltage1-Max:

    35.35 V

  • Output Voltage1-Min:

    2.46 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Regulator Type:

    ADJUSTABLE POSITIVE SINGLE OUTPUT STANDARD REGULATOR

  • Seated Height-Max:

    2.642 mm

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.493 mm

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LT1020CSW#PBF Overview

Use the download button to access the LT1020CSW#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LT102, or try a keyword search, such as Linear Regulator ICs

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems that are used in appl

Parts related to LT1020CSW#PBF

Showing 0 results

LT1020CSW#PBF Alternates

Showing results

Image Part Number Model
Part Image LT1020CSW#PBF Linear Technology

LT1020 - Micropower Regulator and Comparator; Package: SO; Pins: 16; Temperature Range: 0°C to 70°C

Part Image LT1020ISW Analog Devices Inc

Adjustable Positive Standard Regulator, BIPolar, PDSO16

Part Image LT1020ISW#TRPBF Linear Technology

LT1020 - Micropower Regulator and Comparator; Package: SO; Pins: 16; Temperature Range: -40°C to 85°C

Part Image LT1020CSW Linear Technology

LT1020 - Micropower Regulator and Comparator; Package: SO; Pins: 16; Temperature Range: 0°C to 70°C

Part Image LT1020CSW Analog Devices Inc

Adjustable Positive Standard Regulator, BIPolar, PDSO16

For a full list of alternate parts for LT1020CSW#PBF, check out Findchips.com
