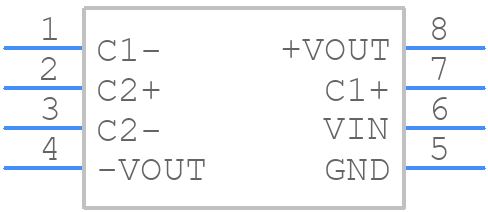

Symbol
LT1026IS8#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT1026IS8#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - LT1128CS8#PBF
click to zoom
3D Models
LT1026IS8#PBF - Analog Devices - 3D model - Small Outline Packages - LT1128CS8#PBF
click to zoom

LT1026IS8#PBF Details

  • Manufacturer Part Number:

    LT1026IS8#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    0.150 INCH, PLASTIC, SO-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1610 (S8)

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    SWITCHED CAPACITOR CONVERTER

  • Input Voltage-Max:

    10 V

  • Input Voltage-Min:

    4 V

  • Input Voltage-Nom:

    5 V

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Max:

    18 V

  • Output Voltage-Min:

    5.25 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max (Isup):

    30 mA

  • Surface Mount:

    YES

  • Switcher Configuration:

    DOUBLER INVERTER

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

LT1026IS8#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT1026IS8 involves keeping the input and output traces short and separate, using a solid ground plane, and placing the input and output capacitors close to the device. A 4-layer PCB with a dedicated ground plane is recommended.
  • To ensure stability, ensure that the output capacitor is within the recommended range, the input capacitor is properly sized, and the device is operated within the recommended input voltage range. Additionally, avoid using long input traces and minimize the distance between the input and output capacitors.
  • The maximum power dissipation of the LT1026IS8 is 1.4W. However, this can be affected by the ambient temperature, PCB layout, and airflow. It's essential to ensure proper thermal management to prevent overheating.
  • The LT1026IS8 is rated for operation up to 125°C. However, the device's performance and reliability may degrade at high temperatures. It's essential to consider the device's thermal characteristics and ensure proper cooling in high-temperature applications.
  • To protect the LT1026IS8 from input voltage transients, use a TVS (Transient Voltage Suppressor) diode or a voltage clamp circuit at the input. This will help prevent damage from voltage spikes and ensure reliable operation.
