LT1073CN8-5#PBF - Analog Devices

Description: Micropower DC-DC Converter Adjustable and Fixed 5V, 12V

Download LT1073CN8-5#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
LT1073CN8-5#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints

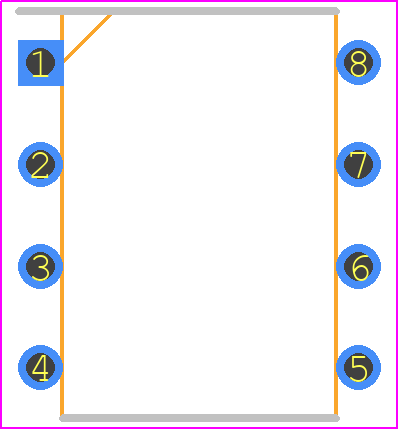

LT1073CN8-5#PBF - Analog Devices PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - N8 Package 8-Lead PDIP (Narrow 0.300) (LTC DWG # 05-08-1510)_1
click to zoom
3D Models
LT1073CN8-5#PBF - Analog Devices - 3D model - Dual-In-Line Packages - N8 Package 8-Lead PDIP (Narrow 0.300) (LTC DWG # 05-08-1510)_1
click to zoom

LT1073CN8-5#PBF Details

  • Manufacturer Part Number:

    LT1073CN8-5#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    0.300 INCH, PLASTIC, DIP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1510 (N8)

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    VOLTAGE-MODE

  • Control Technique:

    PULSE FREQUENCY MODULATION

  • Input Voltage-Max:

    30 V

  • Input Voltage-Min:

    1 V

  • Input Voltage-Nom:

    1.5 V

  • JESD-30 Code:

    R-PDIP-T8

  • JESD-609 Code:

    e3

  • Length:

    10.16 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    70 °C

  • Output Current-Max:

    1.5 A

  • Output Voltage-Max:

    5.25 V

  • Output Voltage-Min:

    4.75 V

  • Output Voltage-Nom:

    5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    3.937 mm

  • Surface Mount:

    NO

  • Switcher Configuration:

    BOOST

  • Switching Frequency-Max:

    23 kHz

  • Technology:

    BIPOLAR

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.62 mm

LT1073CN8-5#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT1073CN8-5 involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. Additionally, it's recommended to use a separate analog ground plane and to keep the power supply traces away from the analog signals.
  • To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Additionally, ensure that the output capacitor has a low ESR (Equivalent Series Resistance) and that the input capacitor is properly bypassed. Also, avoid using long input and output traces, and keep the device away from noise sources.
  • The LT1073CN8-5 can operate in ambient temperatures up to 70°C. However, the device's performance and reliability may be affected at higher temperatures, so it's recommended to derate the device's power dissipation accordingly.
  • No, the LT1073CN8-5 is a linear regulator and is not suitable for switching regulator applications. It's designed to provide a stable, low-noise output voltage in linear regulator configurations.
  • The power dissipation of the LT1073CN8-5 can be calculated using the formula: Pd = (Vin - Vout) x Iout, where Vin is the input voltage, Vout is the output voltage, and Iout is the output current. Make sure to consider the device's thermal resistance and maximum junction temperature when calculating the power dissipation.
