LT1082CQ#TR - Analog Devices

LT1082CQ#TR Details

• Manufacturer Part Number:

  LT1082CQ#TR

• Part Life Cycle Code:

  Obsolete

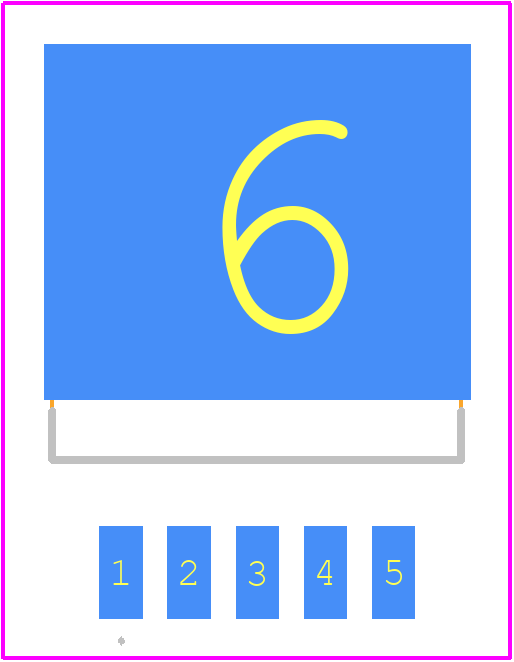

• Package Description:

  DD-5

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  0

• Analog IC - Other Type:

  SWITCHING REGULATOR

• Control Mode:

  CURRENT-MODE

• Input Voltage-Max:

  75 V

• Input Voltage-Min:

  3 V

• Input Voltage-Nom:

  15 V

• JESD-30 Code:

  R-PSSO-G5

• JESD-609 Code:

  e0

• Length:

  10.22 mm

• Number of Functions:

  1

• Number of Terminals:

  5

• Operating Temperature-Max:

  70 °C

• Output Current-Max:

  1 A

• Output Voltage-Nom:

  1.24 V

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  SOP

• Package Equivalence Code:

  SMSIP5H,.54,67TB

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  4.572 mm

• Supply Current-Max (Isup):

  7 mA

• Surface Mount:

  YES

• Switcher Configuration:

  BUCK-BOOST

• Switching Frequency-Max:

  75 kHz

• Technology:

  BIPOLAR

• Terminal Finish:

  Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier

• Terminal Form:

  GULL WING

• Terminal Pitch:

  1.7 mm

• Terminal Position:

  SINGLE

• Width:

  8.89 mm
