LT1105IN8#PBF - Analog Devices

Description: Converter Offline Flyback, Forward Topology Up to 200kHz 8-PDIP , 7V ~ 30V , –40°C to 125°C

Download LT1105IN8#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

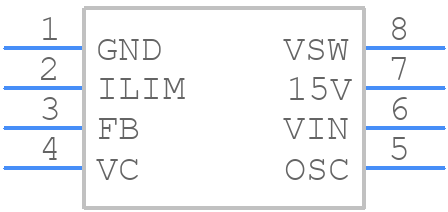

LT1105IN8#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT1105IN8#PBF - Analog Devices PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - N Package 8-Lead PDIP (Narrow .300 Inch)_2026
click to zoom
3D Models
LT1105IN8#PBF - Analog Devices - 3D model - Dual-In-Line Packages - N Package 8-Lead PDIP (Narrow .300 Inch)_2026
click to zoom

LT1105IN8#PBF Details

  • Manufacturer Part Number:

    LT1105IN8#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DIP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1510 (N8)

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Additional Feature:

    LG-MAX; SEATED HGT-CALCULATED

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Input Voltage-Max:

    30 V

  • Input Voltage-Min:

    8 V

  • Input Voltage-Nom:

    20 V

  • JESD-30 Code:

    R-PDIP-T8

  • JESD-609 Code:

    e3

  • Length:

    10.16 mm

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    1.5 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP8,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Seated Height-Max:

    3.937 mm

  • Surface Mount:

    NO

  • Switching Frequency-Max:

    200 kHz

  • Technology:

    BIPOLAR

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

LT1105IN8#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT1105IN8 involves keeping the input and output traces short and wide, using a solid ground plane, and placing the input and output capacitors close to the device. Additionally, it's recommended to use a separate analog ground plane and to keep digital signals away from the analog section.
  • To ensure stability, make sure to follow the recommended component values and layout guidelines in the datasheet. Additionally, ensure that the output capacitor has a low ESR and is properly sized for the output current. Also, avoid using long input traces and keep the input impedance low.
  • The maximum ambient temperature range for the LT1105IN8 is -40°C to 125°C. However, the device's performance may degrade at higher temperatures, and it's recommended to derate the output current and voltage accordingly.
  • Yes, the LT1105IN8 can be used in a switching regulator design, but it's not recommended as it's a linear regulator. The device is not designed to handle the high-frequency switching noise and may not provide the required regulation accuracy. Instead, consider using a switching regulator IC specifically designed for switching regulator applications.
  • The power dissipation of the LT1105IN8 can be calculated using the formula: Pd = (Vin - Vout) x Iout, where Vin is the input voltage, Vout is the output voltage, and Iout is the output current. Make sure to consider the device's thermal resistance and maximum junction temperature when calculating the power dissipation.
