LT1107CS8-12#PBF - Analog Devices

Description: Switching Voltage Regulators Micropower DC/DC Converter Adjustable and Fixed 5V, 12V

Download LT1107CS8-12#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

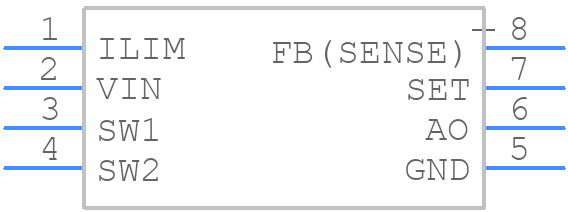

LT1107CS8-12#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT1107CS8-12#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - LT1107CS8-12#PBF
click to zoom
3D Models
LT1107CS8-12#PBF - Analog Devices - 3D model - Small Outline Packages - LT1107CS8-12#PBF
click to zoom

LT1107CS8-12#PBF Details

  • Manufacturer Part Number:

    LT1107CS8-12#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    0.150 INCH, PLASTIC, SO-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1610 (S8)

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    VOLTAGE-MODE

  • Control Technique:

    PULSE FREQUENCY MODULATION

  • Input Voltage-Max:

    30 V

  • Input Voltage-Min:

    2 V

  • Input Voltage-Nom:

    3 V

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    70 °C

  • Output Current-Max:

    1.5 A

  • Output Voltage-Max:

    12.6 V

  • Output Voltage-Min:

    11.4 V

  • Output Voltage-Nom:

    12 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BOOST

  • Switching Frequency-Max:

    88 kHz

  • Technology:

    BIPOLAR

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

LT1107CS8-12#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT1107CS8-12 involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths to reduce noise and EMI. A 4-layer PCB with a dedicated power plane and a separate ground plane is recommended.
  • To ensure stability, make sure to follow the recommended output capacitor selection and layout guidelines. A minimum output capacitance of 10uF is recommended, and the capacitor should be placed close to the device. Additionally, ensure that the input voltage is within the recommended range and that the device is not subjected to excessive noise or EMI.
  • The maximum ambient temperature range for the LT1107CS8-12 is -40°C to 125°C. However, the device's performance and reliability may be affected at extreme temperatures, so it's recommended to operate the device within a temperature range of -20°C to 85°C for optimal performance.
  • Yes, the LT1107CS8-12 is suitable for high-reliability and automotive applications. It is AEC-Q100 qualified and meets the requirements for automotive and industrial applications. However, it's recommended to consult with Analog Devices Inc for specific requirements and to ensure that the device meets the necessary standards and regulations.
  • To troubleshoot issues with the LT1107CS8-12, start by checking the input voltage, output voltage, and output current. Verify that the device is properly connected and that the input and output capacitors are properly selected and placed. Use an oscilloscope to measure the output voltage and current, and check for any signs of oscillation or instability. Consult the datasheet and application notes for troubleshooting guidelines and recommendations.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LT1107CS8-12#PBF Overview

Use the download button to access the LT1107CS8-12#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LT110, or try a keyword search, such as Switching Regulator or Controllers
