LT1113CN8#PBF - Analog Devices

Description: LINEAR TECHNOLOGY - LT1113CN8#PBF - Operational Amplifier, Dual, 2 Amplifier, 5.6 MHz, 3.9 V/µs, ± 4.5V to ± 20V, DIP, 8 Pins

Download LT1113CN8#PBF Model

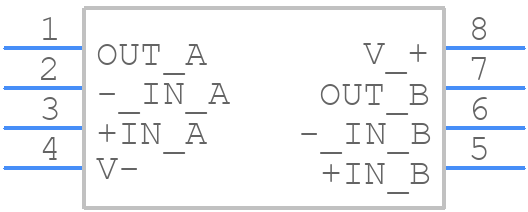

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
LT1113CN8#PBF - Analog Devices PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - N8 Package 8-Lead PDIP (Narrow 0.300)_2020
click to zoom
3D Models
LT1113CN8#PBF - Analog Devices  - 3D model - Dual-In-Line Packages - N8 Package 8-Lead PDIP (Narrow 0.300)_2020
click to zoom

LT1113CN8#PBF Details

  • Manufacturer Part Number:

    LT1113CN8#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DIP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1510 (N8)

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.005 µA

  • Bias Current-Max (IIB) @25C:

    0.00048 µA

  • Common-mode Reject Ratio-Min:

    78 dB

  • Common-mode Reject Ratio-Nom:

    93 dB

  • Frequency Compensation:

    NO

  • Input Offset Current-Max (IIO):

    0.001 µA

  • Input Offset Voltage-Max:

    2800 µV

  • JESD-30 Code:

    R-PDIP-T8

  • JESD-609 Code:

    e3

  • Length:

    10.16 mm

  • Low-Bias:

    YES

  • Low-Offset:

    NO

  • Micropower:

    NO

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage Limit-Max:

    -20 V

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP8,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    3.937 mm

  • Slew Rate-Min:

    1.6 V/us

  • Slew Rate-Nom:

    3.5 V/us

  • Supply Current-Max:

    13.1 mA

  • Supply Voltage Limit-Max:

    20 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    NO

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Unity Gain BW-Nom:

    4500

  • Voltage Gain-Min:

    300000

  • Wideband:

    NO

  • Width:

    7.62 mm

LT1113CN8#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT1113CN8 involves keeping the input and output traces short and separate, using a solid ground plane, and placing the input and output capacitors close to the device. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Also, ensure that the output capacitor has a low ESR and is properly sized for the output current. Additionally, avoid using long input traces and keep the input and output voltage rails decoupled.
  • The LT1113CN8 can operate in ambient temperatures up to 70°C. However, the device's junction temperature should not exceed 150°C. It's essential to ensure proper heat sinking and thermal management to prevent overheating.
  • Yes, the LT1113CN8 is suitable for high-reliability and automotive applications. It's built with high-quality materials and has undergone rigorous testing to ensure its reliability and performance. However, it's essential to follow the recommended operating conditions and design guidelines to ensure the device's reliability.
  • To troubleshoot issues with the LT1113CN8, start by checking the input and output voltage levels, ensuring they are within the recommended specifications. Verify that the device is properly powered and that the input and output capacitors are properly sized. Use an oscilloscope to check for oscillations or noise on the output. If the issue persists, consult the datasheet and application notes for further guidance.
