LT1114IN#PBF - Analog Devices

Description: OP Amp Quad GP ±20V 14-Pin PDIP N

Download LT1114IN#PBF Model

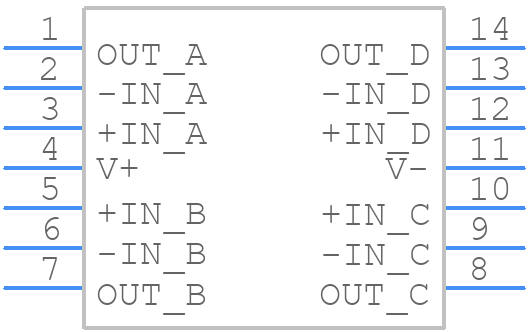

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

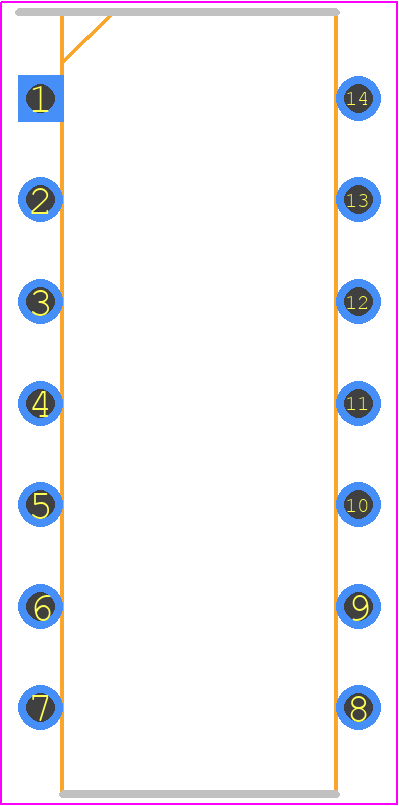

LT1114IN#PBF - Analog Devices PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - N Package 14-Lead PDIP (Narrow .300 Inch)
click to zoom
3D Models
LT1114IN#PBF - Analog Devices  - 3D model - Dual-In-Line Packages - N Package 14-Lead PDIP (Narrow .300 Inch)
click to zoom

LT1114IN#PBF Details

  • Manufacturer Part Number:

    LT1114IN#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    0.300 INCH, PLASTIC, DIP-14

  • Pin Count:

    14

  • Manufacturer Package Code:

    05-08-1510 (N14)

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.00028 µA

  • Common-mode Reject Ratio-Min:

    115 dB

  • Common-mode Reject Ratio-Nom:

    136 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    75 µV

  • JESD-30 Code:

    R-PDIP-T14

  • JESD-609 Code:

    e3

  • Length:

    19.305 mm

  • Low-Bias:

    YES

  • Low-Offset:

    YES

  • Micropower:

    YES

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage Limit-Max:

    -20 V

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Number of Functions:

    4

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP14,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    3.809 mm

  • Slew Rate-Min:

    0.16 V/us

  • Slew Rate-Nom:

    0.3 V/us

  • Supply Current-Max:

    1.8 mA

  • Supply Voltage Limit-Max:

    20 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    NO

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Unity Gain BW-Nom:

    750

  • Voltage Gain-Min:

    600000

  • Wideband:

    NO

  • Width:

    7.62 mm

LT1114IN#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT1114IN#PBF involves keeping the input and output traces short and separate, using a solid ground plane, and placing the input and output capacitors close to the device. Additionally, it's recommended to use a low-ESR output capacitor and to minimize the loop area of the input and output traces to reduce electromagnetic interference (EMI).
  • To ensure stability, it's essential to follow the recommended component values and PCB layout guidelines. Additionally, the output capacitor should be chosen to ensure a minimum ESR of 0.05 ohms, and the input capacitor should be chosen to ensure a minimum ESR of 1 ohm. It's also recommended to add a small ceramic capacitor (e.g., 10nF) in parallel with the output capacitor to improve stability.
  • The LT1114IN#PBF has an operating temperature range of -40°C to 125°C, but the maximum ambient temperature range depends on the specific application and the device's power dissipation. It's recommended to derate the device's power dissipation according to the ambient temperature to ensure reliable operation.
  • The LT1114IN#PBF is a commercial-grade device, but Analog Devices Inc offers a high-reliability version, the LT1114HIN#PBF, which is designed for high-reliability and aerospace applications. The high-reliability version has undergone additional testing and screening to ensure its performance in harsh environments.
  • To troubleshoot issues with the LT1114IN#PBF, start by verifying the input voltage, output voltage, and output current. Check for any signs of overheating, such as excessive temperature or thermal shutdown. Use an oscilloscope to check for oscillations or noise on the output. Also, verify that the input and output capacitors are properly connected and meet the recommended specifications.
