LT1115CSW#TRPBF - Analog Devices

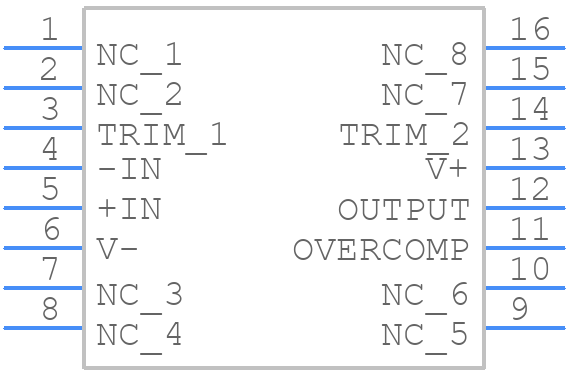

LT1115CSW#TRPBF Details

• Manufacturer Part Number:

  LT1115CSW#TRPBF

• Brand Name:

  Analog Devices Inc

• Pbfree Code:

  No

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  SOP-16

• Pin Count:

  16

• Manufacturer Package Code:

  05-08-1620 (SW16)

• ECCN Code:

  EAR99

• HTS Code:

  8542.33.00.01

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  9

• Amplifier Type:

  OPERATIONAL AMPLIFIER

• Architecture:

  VOLTAGE-FEEDBACK

• Average Bias Current-Max (IIB):

  0.55 µA

• Bias Current-Max (IIB) @25C:

  0.38 µA

• Common-mode Reject Ratio-Min:

  104 dB

• Common-mode Reject Ratio-Nom:

  123 dB

• Frequency Compensation:

  YES

• Input Offset Voltage-Max:

  200 µV

• JESD-30 Code:

  R-PDSO-G16

• Length:

  10.2995 mm

• Low-Bias:

  NO

• Low-Offset:

  NO

• Micropower:

  NO

• Moisture Sensitivity Level:

  1

• Neg Supply Voltage Limit-Max:

  -22 V

• Neg Supply Voltage-Nom (Vsup):

  -18 V

• Number of Functions:

  1

• Number of Terminals:

  16

• Operating Temperature-Max:

  70 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  SOP

• Package Equivalence Code:

  SOP16,.4

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUT LINE

• Packing Method:

  TR

• Power:

  NO

• Programmable Power:

  NO

• Seated Height-Max:

  2.642 mm

• Slew Rate-Min:

  10 V/us

• Slew Rate-Nom:

  15 V/us

• Supply Current-Max:

  13 mA

• Supply Voltage Limit-Max:

  22 V

• Supply Voltage-Nom (Vsup):

  18 V

• Surface Mount:

  YES

• Technology:

  BIPOLAR

• Terminal Form:

  GULL WING

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  DUAL

• Unity Gain BW-Nom:

  70000

• Voltage Gain-Min:

  1000000

• Wideband:

  NO

• Width:

  7.493 mm
