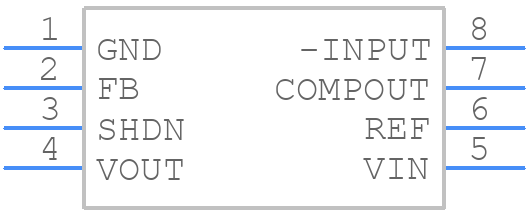

LT1120CS8#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT1120CS8#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - S8 Package
click to zoom
3D Models
LT1120CS8#PBF - Analog Devices - 3D model - Small Outline Packages - S8 Package
click to zoom

LT1120CS8#PBF Details

  • Manufacturer Part Number:

    LT1120CS8#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Package Description:

    SOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1610 (S8)

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    3

  • Adjustability:

    ADJUSTABLE

  • Dropout Voltage1-Nom:

    2.04 V

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9025 mm

  • Line Regulation-Max (%/V):

    0.02

  • Load Regulation-Max(%):

    0.8%

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature TJ-Max:

    110 °C

  • Output Current1-Max:

    0.125 A

  • Output Voltage1-Max:

    2.54 V

  • Output Voltage1-Min:

    2.46 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Regulator Type:

    ADJUSTABLE POSITIVE SINGLE OUTPUT STANDARD REGULATOR

  • Seated Height-Max:

    1.752 mm

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

LT1120CS8#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT1120CS8 involves keeping the input and output traces short and separate, using a solid ground plane, and placing the input and output capacitors close to the device. Additionally, it's recommended to use a low-ESR output capacitor and to minimize the loop area of the input and output traces to reduce electromagnetic interference (EMI).
  • To ensure stability, it's essential to follow the recommended compensation network and component values, as well as to maintain a minimum output capacitance of 10uF. Additionally, the input and output voltage ranges should be within the specified limits, and the device should be operated within the recommended temperature range.
  • The maximum input voltage that the LT1120CS8 can handle is 15V, but it's recommended to operate the device with an input voltage of 12V or less to ensure optimal performance and reliability.
  • The LT1120CS8 is rated for operation up to 125°C, but its performance and reliability may degrade at high temperatures. It's recommended to derate the device's output current and voltage at high temperatures to ensure reliable operation.
  • To troubleshoot issues with the LT1120CS8, start by verifying that the input voltage and output load are within the specified ranges. Check for proper PCB layout and component selection, and ensure that the device is operated within the recommended temperature range. Use an oscilloscope to check for oscillations or noise on the output, and consult the datasheet and application notes for guidance on troubleshooting common issues.
