LT1127CSW#PBF - Analog Devices

Description: High Speed Operational Amplifiers 4x Decomp L N, Hi Speed Prec Op Amps

Download LT1127CSW#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

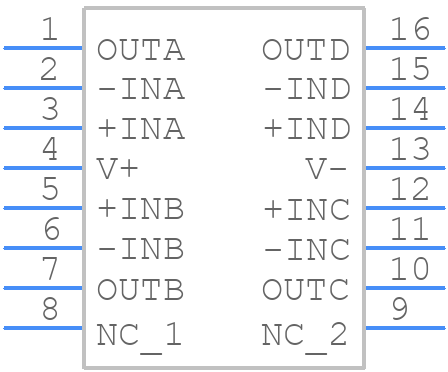

Symbol
LT1127CSW#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT1127CSW#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - LT1127CSW#PBF
click to zoom
3D Models
LT1127CSW#PBF - Analog Devices - 3D model - Small Outline Packages - LT1127CSW#PBF
click to zoom

LT1127CSW#PBF Details

  • Manufacturer Part Number:

    LT1127CSW#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    0.300 INCH, LEAD FREE, PLASTIC, SO-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    05-08-1620 (SW16)

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.065 µA

  • Bias Current-Max (IIB) @25C:

    0.003 µA

  • Common-mode Reject Ratio-Min:

    106 dB

  • Common-mode Reject Ratio-Nom:

    121 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    240 µV

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    10.2995 mm

  • Low-Bias:

    NO

  • Low-Offset:

    YES

  • Micropower:

    NO

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage Limit-Max:

    -22 V

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Number of Functions:

    4

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SOP16,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.642 mm

  • Slew Rate-Min:

    8 V/us

  • Slew Rate-Nom:

    10.2 V/us

  • Supply Current-Max:

    2.6 mA

  • Supply Voltage Limit-Max:

    22 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Unity Gain BW-Nom:

    65000

  • Voltage Gain-Min:

    1500000

  • Wideband:

    NO

  • Width:

    7.493 mm

LT1127CSW#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT1127CSW involves keeping the input and output traces short and wide, using a solid ground plane, and placing the input and output capacitors close to the device. Additionally, it's recommended to use a separate analog ground plane and to keep the analog and digital grounds separate.
  • To ensure stability, make sure to follow the recommended compensation network values and layout guidelines. Also, ensure that the output capacitor is of sufficient value and that the output voltage is within the recommended range. Additionally, check for any parasitic inductance or capacitance in the layout that could cause oscillation.
  • The maximum ambient temperature range for the LT1127CSW is -40°C to 125°C. However, the device's performance may degrade at higher temperatures, and it's recommended to derate the output current and voltage accordingly.
  • Yes, the LT1127CSW is suitable for high-reliability and aerospace applications. It's built with high-reliability materials and manufacturing processes, and it's qualified to various industry standards such as MIL-PRF-38535 and NASA's EEE-INST-002. However, it's recommended to consult with Analog Devices' application engineers to ensure the device meets the specific requirements of your application.
  • To troubleshoot issues with the LT1127CSW, start by checking the input voltage, output voltage, and output current. Verify that the device is properly powered and that the input and output capacitors are of sufficient value. Check for any signs of overheating, and ensure that the device is properly soldered and mounted. If the issue persists, consult the datasheet and application notes, or contact Analog Devices' technical support for further assistance.
