- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for LT1129CQ#PBF
- Part Number LT1129CQ#PBF
- Manufacturer Analog Devices
- Pin Count 6
- Part Category Integrated Circuit
- Package Category Other
- Footprint Name Other - LT1129CQ#PBF-2
- Released Date Feb 10, 2020
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
LT1129CQ#PBF Details
-
Manufacturer Part Number:
LT1129CQ#PBF
-
Brand Name:
Analog Devices Inc
-
Pbfree Code:
No
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Package Description:
LEAD FREE, PLASTIC, D2PAK-5
-
Pin Count:
5
-
Manufacturer Package Code:
05-08-1461
-
Country Of Origin:
Malaysia
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.01
-
Manufacturer:
Analog Devices Inc
LT1129CQ#PBF Frequently Asked Questions (FAQs)
-
A good PCB layout for the LT1129CQ involves keeping the input and output traces short and wide, using a solid ground plane, and placing the input and output capacitors close to the device. Additionally, it's recommended to use a separate analog ground plane and to keep the power supply traces away from the analog signals.
-
To ensure stability, it's essential to follow the recommended compensation network and component values, and to ensure that the output capacitor is properly sized and placed. Additionally, the input and output impedance should be matched, and the device should be operated within its recommended operating conditions.
-
The maximum power dissipation of the LT1129CQ is dependent on the package type and the ambient temperature. For the Q-16 package, the maximum power dissipation is 1.4W at 25°C ambient temperature. However, this value can be derated at higher temperatures.
-
The LT1129CQ is rated for operation from -40°C to 125°C. However, the device's performance and reliability may degrade at higher temperatures. It's essential to follow the recommended operating conditions and to ensure proper thermal management to prevent overheating.
-
To protect the LT1129CQ from overvoltage and overcurrent conditions, it's recommended to use voltage and current limiting circuits, such as zener diodes and current-limiting resistors. Additionally, the device should be operated within its recommended operating conditions, and the input and output should be properly filtered and regulated.
Trust Checks
Expert Contribution
System Verified
Community Approved
LT1129CQ#PBF Overview

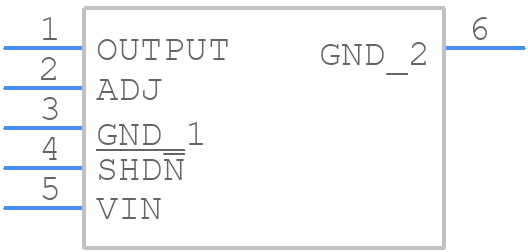

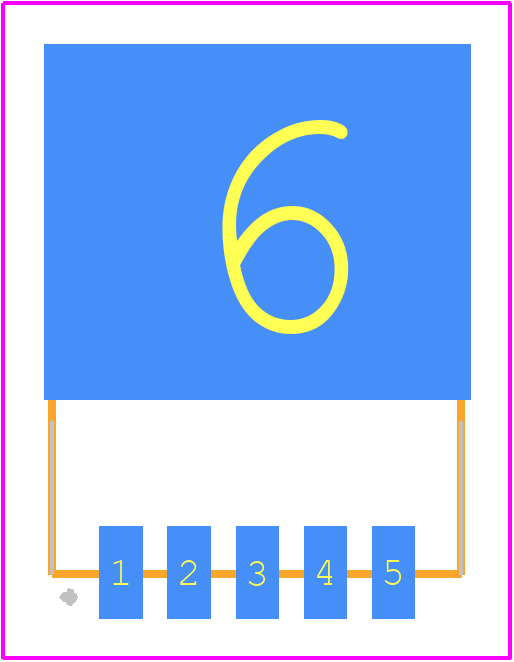

Use the download button to access the LT1129CQ#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LT112,
or try a keyword search, such as Linear Regulator ICs
