LT1160IS#PBF - Analog Devices

Description: Gate Drivers HalfBridge N-Ch Pwr MOSFET Drvr.

Download LT1160IS#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

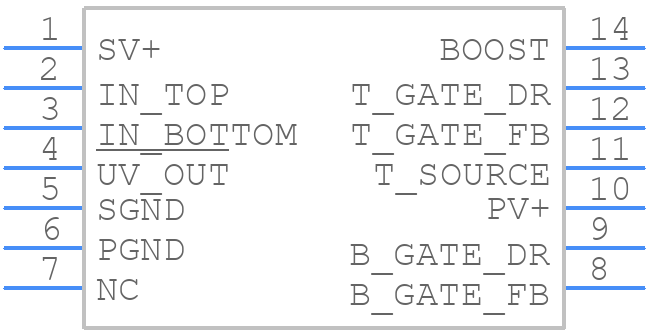

LT1160IS#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT1160IS#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - S Package 14-Lead Plastic Small Outline (Narrow .150 Inch)
click to zoom
3D Models
LT1160IS#PBF - Analog Devices - 3D model - Small Outline Packages - S Package 14-Lead Plastic Small Outline (Narrow .150 Inch)
click to zoom

LT1160IS#PBF Details

  • Manufacturer Part Number:

    LT1160IS#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    0.150 INCH, PLASTIC, SO-14

  • Pin Count:

    14

  • Manufacturer Package Code:

    05-08-1610 (S14)

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • High Side Driver:

    YES

  • Input Characteristics:

    SCHMITT TRIGGER

  • Interface IC Type:

    HALF BRIDGE BASED MOSFET DRIVER

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e3

  • Length:

    8.65 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    TOTEM-POLE

  • Output Peak Current Limit-Nom:

    1.5 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    15 mA

  • Supply Voltage-Max:

    15 V

  • Supply Voltage-Min:

    10 V

  • Supply Voltage-Nom:

    12 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Turn-off Time:

    0.6 µs

  • Turn-on Time:

    0.5 µs

  • Width:

    3.9 mm

LT1160IS#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT1160IS#PBF involves keeping the input and output traces short and separate, using a solid ground plane, and placing bypass capacitors close to the device. Additionally, it's recommended to use a star-ground configuration and to avoid running digital and analog traces parallel to each other.
  • To ensure the LT1160IS#PBF operates within its recommended operating conditions, make sure to operate it within the specified voltage range (4.5V to 18V), keep the junction temperature below 150°C, and avoid exceeding the maximum current ratings. Also, ensure that the device is properly decoupled and that the input and output voltages are within the specified ranges.
  • The LT1160IS#PBF is a high-speed, low-power op-amp suitable for a wide range of applications, including audio, video, and data acquisition systems. It can be used as a voltage follower, differential amplifier, or active filter. In your design, you can use it to amplify small signals, filter out noise, or drive heavy loads.
  • To troubleshoot common issues with the LT1160IS#PBF, start by checking the PCB layout and ensuring that it meets the recommended layout guidelines. Check for proper decoupling, and ensure that the input and output voltages are within the specified ranges. Also, verify that the device is operating within its recommended operating conditions. If the issue persists, try reducing the gain or adding a compensation capacitor to stabilize the amplifier.
  • The LT1160IS#PBF has a maximum junction temperature rating of 150°C. To ensure it doesn't overheat, make sure to provide adequate heat sinking, such as a copper plane or a heat sink. Also, ensure good airflow around the device, and avoid operating it in high-temperature environments. Additionally, reduce the power consumption by minimizing the quiescent current and using a low-dropout voltage regulator.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LT1160IS#PBF Overview

Use the download button to access the LT1160IS#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LT116, or try a keyword search, such as MOSFET Drivers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
