LT1161ISW#PBF - Analog Devices

Description: Gate Drivers 4x Protected Hi-Side MOSFET Drvr

Download LT1161ISW#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

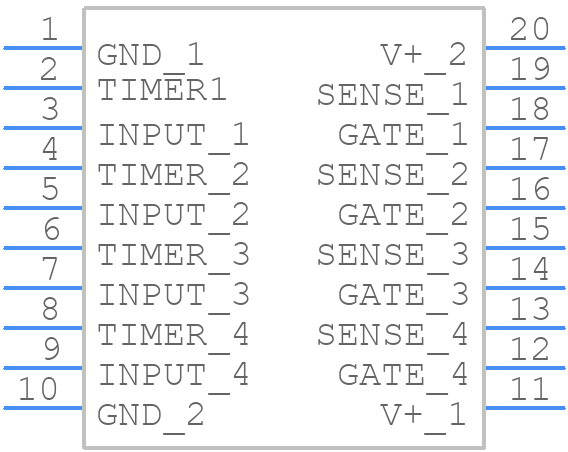

LT1161ISW#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT1161ISW#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - SW20
click to zoom
3D Models
LT1161ISW#PBF - Analog Devices - 3D model - Small Outline Packages - SW20
click to zoom

LT1161ISW#PBF Details

  • Manufacturer Part Number:

    LT1161ISW#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOP-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    05-08-1620 (SW20)

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • High Side Driver:

    YES

  • Input Characteristics:

    GATED SCHMITT TRIGGER

  • Interface IC Type:

    BUFFER OR INVERTER BASED MOSFET DRIVER

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e3

  • Length:

    12.8015 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    4

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    TOTEM-POLE

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP20,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.642 mm

  • Supply Current-Max:

    6.5 mA

  • Supply Voltage-Max:

    48 V

  • Supply Voltage-Min:

    12 V

  • Supply Voltage-Nom:

    24 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Turn-off Time:

    200 µs

  • Turn-on Time:

    400 µs

  • Width:

    7.49 mm

LT1161ISW#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT1161ISW#PBF involves keeping the input and output traces separate, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a low-ESR capacitor for the output filter and to keep the input and output capacitors close to the device.
  • To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Additionally, ensure that the output capacitor is properly sized and that the device is operated within its recommended operating conditions. If oscillations occur, try adding a small capacitor (e.g., 10nF) between the output and ground.
  • The maximum input voltage for the LT1161ISW#PBF is 15V. Exceeding this voltage can cause damage to the device. It's recommended to use a voltage regulator or other protection circuitry to ensure the input voltage remains within the recommended range.
  • The LT1161ISW#PBF is rated for operation up to 125°C. However, the device's performance and reliability may degrade at high temperatures. It's recommended to derate the device's performance and consider using a heat sink or other thermal management techniques to ensure reliable operation.
  • To troubleshoot issues with the LT1161ISW#PBF, start by verifying the input voltage, output voltage, and output current. Check for proper PCB layout, component values, and soldering quality. Use an oscilloscope to measure the output voltage and current, and check for signs of oscillation or noise. Consult the datasheet and application notes for guidance on troubleshooting and optimization.
