LT1162CSW#PBF - Analog Devices

Description: Linear Technology LT1161CSW#PBF, Quad MOSFET Power Driver,, 8 ??48 V, Non-Inverting, 20-Pin SOIC%0%0

Download LT1162CSW#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

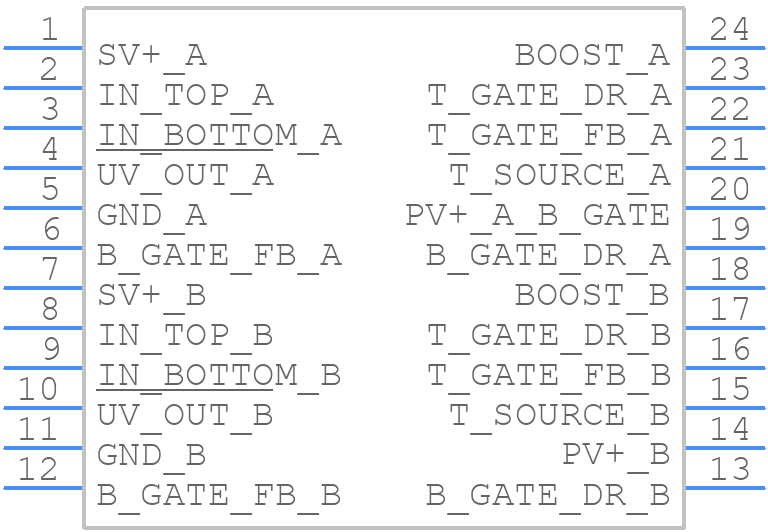

LT1162CSW#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints

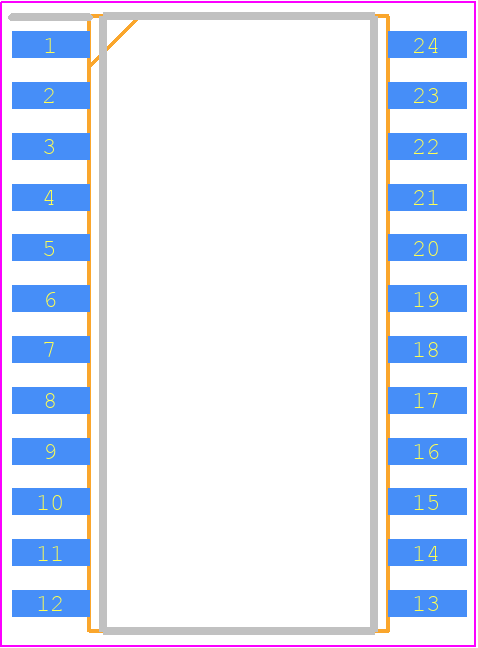

LT1162CSW#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - SW24
click to zoom
3D Models
LT1162CSW#PBF - Analog Devices - 3D model - Small Outline Packages - SW24
click to zoom

LT1162CSW#PBF Details

  • Manufacturer Part Number:

    LT1162CSW#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    0.300 INCH, PLASTIC, SO-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    05-08-1620 (SW24)

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • High Side Driver:

    YES

  • Input Characteristics:

    SCHMITT TRIGGER

  • Interface IC Type:

    FULL BRIDGE BASED MOSFET DRIVER

  • JESD-30 Code:

    R-PDSO-G24

  • JESD-609 Code:

    e3

  • Length:

    15.4 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    70 °C

  • Output Characteristics:

    TOTEM-POLE

  • Output Peak Current Limit-Nom:

    1.5 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.65 mm

  • Supply Current-Max:

    15 mA

  • Supply Voltage-Max:

    15 V

  • Supply Voltage-Min:

    10 V

  • Supply Voltage-Nom:

    12 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Turn-off Time:

    0.6 µs

  • Turn-on Time:

    0.5 µs

  • Width:

    7.5 mm

LT1162CSW#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT1162CSW involves keeping the input and output traces short and wide, using a solid ground plane, and placing the input and output capacitors close to the device. Additionally, it's recommended to use a separate analog and digital ground plane to minimize noise coupling.
  • To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Additionally, ensure that the input and output capacitors are of high quality and have low equivalent series resistance (ESR). Also, avoid using long input traces and keep the device away from noise sources.
  • The LT1162CSW can handle input voltages up to 80V, but it's recommended to limit the input voltage to 60V or less to ensure reliable operation and to prevent damage to the device.
  • The LT1162CSW is rated for operation up to 125°C, but it's recommended to derate the device's performance at high temperatures. Consult the datasheet for thermal derating curves and ensure proper heat sinking and cooling to prevent overheating.
  • To troubleshoot issues with the LT1162CSW, start by checking the input and output voltages, and ensuring that the device is properly powered. Check for signs of overheating, and verify that the PCB layout and component values are correct. Use an oscilloscope to check for oscillations or noise on the output.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LT1162CSW#PBF Overview

Use the download button to access the LT1162CSW#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LT116, or try a keyword search, such as MOSFET Drivers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
