LT1166CN8#PBF - Analog Devices

Description: Gate Drivers Pwr Output Stage Automatic Bias Sys

Download LT1166CN8#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

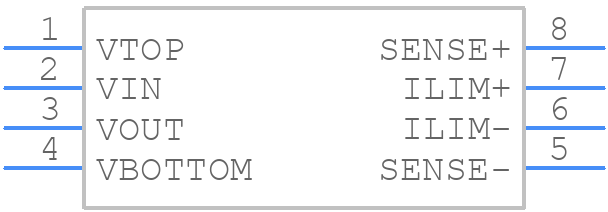

Symbol
LT1166CN8#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT1166CN8#PBF - Analog Devices PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - N Package 8-Lead PDIP (Narrow .300 Inch)
click to zoom
3D Models
LT1166CN8#PBF - Analog Devices - 3D model - Dual-In-Line Packages - N Package 8-Lead PDIP (Narrow .300 Inch)
click to zoom

LT1166CN8#PBF Details

  • Manufacturer Part Number:

    LT1166CN8#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DIP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1510 (N8)

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    ANALOG CIRCUIT
