LT1182CS#PBF - Analog Devices

Description: LINEAR TECHNOLOGY - LT1182CS#PBF - DC/DC, DUAL, CCFL/LCD, 30V, 0.2MHZ, 16SO

Download LT1182CS#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

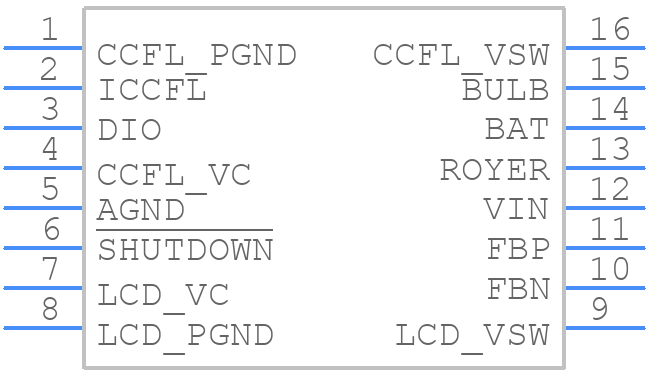

LT1182CS#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT1182CS#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - S Package 16-Lead Plastic Small Outline
click to zoom
3D Models
LT1182CS#PBF - Analog Devices - 3D model - Small Outline Packages - S Package 16-Lead Plastic Small Outline
click to zoom

LT1182CS#PBF Details

  • Manufacturer Part Number:

    LT1182CS#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    PLASTIC, SO-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    05-08-1610 (S16)

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    FLUORESCENT LIGHT CONTROLLER

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    30 V

  • Input Voltage-Min:

    3 V

  • Input Voltage-Nom:

    5 V

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    9.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    100 °C

  • Output Current-Max:

    3 A

  • Output Voltage-Nom:

    1.244 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max (Isup):

    14 mA

  • Surface Mount:

    YES

  • Switcher Configuration:

    SINGLE

  • Switching Frequency-Max:

    240 kHz

  • Technology:

    BIPOLAR

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

LT1182CS#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT1182CS involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths to reduce parasitic inductance and capacitance. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Also, ensure that the output capacitor has a low ESR (Equivalent Series Resistance) and is properly sized for the output current. Additionally, avoid using capacitors with high ESL (Equivalent Series Inductance) in the output filter.
  • The maximum ambient temperature range for the LT1182CS is -40°C to 125°C. However, the device's performance and reliability may degrade at higher temperatures, so it's recommended to operate it within a temperature range of -20°C to 85°C for optimal performance.
  • Yes, the LT1182CS is suitable for high-reliability and automotive applications. It has a high MTBF (Mean Time Between Failures) rating and is AEC-Q100 qualified, making it suitable for use in harsh environments.
  • To troubleshoot issues with the LT1182CS, start by checking the input voltage, output voltage, and output current. Verify that the device is properly powered and that the output is not overloaded. Check for signs of overheating, such as excessive temperature rise or thermal shutdown. Use an oscilloscope to check for oscillations or noise on the output. Consult the datasheet and application notes for guidance on troubleshooting specific issues.
